Hyaline Cartilage – Definition, Structure, Functions

What is Hyaline Cartilage?

Hyaline cartilage is a type of connective tissue found in various parts of the human body, characterized by its glossy and smooth appearance. Here are some key points about hyaline cartilage:

  • Hyaline cartilage is the most common type of cartilage in the body.
  • It has a glass-like (hyaline) and translucent appearance.
  • It is found in areas such as the bones of free-moving joints (articular cartilage), the walls of the respiratory tract (e.g., bronchi, trachea), ribs, nose, and larynx.
  • The color of hyaline cartilage is pearl-gray, and it has a firm consistency.
  • It contains a significant amount of collagen, which provides structural support and strength.
  • Hyaline cartilage is avascular, meaning it lacks blood vessels, and it is not innervated, meaning it has no nerves.
  • It is relatively simple in structure compared to other types of cartilage.
  • Hyaline cartilage plays a crucial role in providing smooth joint surfaces, supporting the respiratory system, and maintaining the shape and structure of certain body parts.
  • While hyaline cartilage has some regenerative capacity, its ability to repair itself is limited compared to other tissues.
  • Damage or deterioration of hyaline cartilage can lead to conditions like osteoarthritis, where the cartilage wears away, causing joint pain and dysfunction.

Overall, hyaline cartilage serves as an important connective tissue in the body, contributing to the proper functioning and structure of various organs and joints.

Definition of Hyaline Cartilage

Hyaline cartilage is a translucent and firm connective tissue that provides structural support and smooth joint surfaces in the body.

Structure of Hyaline Cartilage

Structure of Hyaline Cartilage
Structure of Hyaline Cartilage
  • Composition: Hyaline cartilage is composed of chondroblasts, chondrocytes, collagen fibers, and an extracellular matrix (ground substance) produced by these cells.
  • External Covering: The cartilage is covered externally by a fibrous membrane called the perichondrium or synovial membrane, which provides nutrition to the cartilage through diffusion.
  • Matrix Composition: The hyaline cartilage matrix primarily consists of type II collagen and chondroitin sulfate, which provide strength and flexibility to the tissue.
  • Location: Hyaline cartilage is found in various areas of the body, such as the sternal ends of the ribs, larynx, trachea, bronchi, and on the articulating surfaces of bones.
  • Function: Hyaline cartilage gives structures a definite but pliable form, providing support and shape. The presence of collagen fibers contributes to the strength of joints but limits their mobility and flexibility.
  • Microanatomy: Under a microscope, hyaline cartilage appears as rounded or bluntly angular chondrocytes arranged in groups within a granular matrix. The chondrocytes have translucent protoplasm, one or two round nuclei, and are contained within cavities called cartilage lacunae.
  • Articular Cartilage: Articular cartilage is a type of hyaline cartilage found on the articulating surfaces of bones within synovial joints. It has a specialized zonal organization, with superficial and deep zones characterized by different orientations of collagen fibers.
  • Osteoarthritis: Breakdown of the articular cartilage matrix can lead to osteoarthritis, the most common type of joint disease, which affects millions of people worldwide.

Hyaline cartilage plays a vital role in maintaining the structure and function of various body parts, providing support, flexibility, and smooth joint surfaces.

What is hyaline cartilage and where is it located?

  • Hyaline cartilage is a type of cartilage characterized by its shiny, smooth, and slightly bluish appearance. It develops from mesenchymal cells found in the bone marrow and does not contain blood vessels or nerves. It obtains nutrients through diffusion from surrounding tissues.
  • The structure of hyaline cartilage includes fine type II collagen fibers, chondrocytes (matrix-producing cells), and the extracellular matrix (or ground substance). Type II collagen fibers are thinner than type I collagen fibers and provide strength to the tissue. Other collagen types, such as type I, IV, V, VI, IX, and XI, are also present in small quantities.
  • The extracellular matrix of hyaline cartilage is a gelatinous material rich in glycosaminoglycans (GAGs), proteoglycans, and glycoproteins. GAGs are long polysaccharides that attract sodium and potassium ions, regulating the water content in the matrix. Examples of GAGs found in hyaline cartilage include chondroitin sulfate, keratan sulfate, and hyaluronic acid.
  • Proteoglycans and glycoproteins are molecules that bind extracellular components together, creating a gel-like fluid that helps absorb compression and force.
  • Chondrocytes are the only cartilage cells found in hyaline cartilage. They originate as chondroblasts and are responsible for producing and maintaining the cartilaginous matrix. Chondrocytes are immobilized within small spaces called lacunae. They have a limited ability to replicate and play a role in the development, repair, and maintenance of the extracellular matrix.
  • The perichondrium covers hyaline cartilage in most cases. It consists of an outer fibrous layer that produces collagen fibers and an inner layer involved in cartilage formation by producing chondroblasts or chondrocytes. However, the articular cartilage on the ends of bones in adults is not covered by the perichondrium.
  • Hyaline cartilage is found in various locations, including the developing skeleton in embryos, the respiratory tract (such as the trachea and bronchi), and the articulating surfaces of bones. It provides support, pliability, and a smooth surface for joint movement.

Histology of Hyaline Cartilage

The histology of hyaline cartilage provides insight into its microscopic appearance and organization. When observed under a microscope, hyaline cartilage exhibits distinct features.

Chondrocytes, the cells of hyaline cartilage, appear rounded or angular in shape. In adult cartilage, these cells are arranged in isogenous groups, originating from a single progenitor cell. The extracellular matrix surrounding the chondrocytes appears visually uniform and basophilic, meaning it stains blue-purple with basic dyes. This homogeneity is due to the high concentration of sulfated glycosaminoglycans (GAGs) in the matrix, which mask the visibility of collagen fibers. The collagen fibers in hyaline cartilage, particularly type II collagen, are very small, contributing to the shiny and smooth appearance of the extracellular matrix.

The extracellular matrix of hyaline cartilage is not evenly distributed throughout. It can be divided into three basic zones:

  1. Capsular matrix: This thin zone surrounds each lacuna, the space occupied by a chondrocyte. The highest concentration of sulfated GAGs is found in the capsular matrix.
  2. Territorial matrix: It surrounds the capsular matrix and has a distinctive staining pattern. This matrix contains a lower concentration of sulfated GAGs compared to the capsular matrix.
  3. Interterritorial matrix: This matrix exhibits a lighter staining intensity due to a lower concentration of sulfated GAGs and a higher proportion of collagen fibers. It is located between the territorial matrices.

Histological staining methods can be used to visualize hyaline cartilage under the microscope. The Van Gieson stain, which utilizes picric acid and acid fuchsin, stains collagen fibers red. When observed using this stain, the cartilage appears as a red zone situated beneath the epithelium. The staining intensity is lighter closer to the lacunae, indicating the presence of the territorial matrix.

Zones of hyaline cartilage.
Zones of hyaline cartilage. Credit: Harsha Pratap. (2017). Microscopic anatomy of Hyaline cartilage. Slideshare.Net.

Another staining method commonly used is hematoxylin and eosin (H&E). In H&E-stained sections, the color intensities are reversed compared to the Van Gieson stain. The territorial matrix appears dark, while the interterritorial matrix appears lighter in color. Groups of chondrocytes surrounded by darker areas can be observed, representing isogenous groups derived from a common progenitor cell. The perichondrium, a fibrous membrane, surrounds the hyaline cartilage except in the case of articular cartilage.

The histological examination of hyaline cartilage provides valuable information about its cellular and matrix composition, allowing for a better understanding of its structure and function.

Hyaline Cartilage Example – Articular Cartilage

  • Articular cartilage is a specific example of hyaline cartilage found in the joints of the body. It has unique characteristics that distinguish it from other types of hyaline cartilage. Articular cartilage is typically 2 to 4 mm thick in humans and lacks blood vessels, nerves, and lymphatics. Its extracellular matrix (ECM) is dense, while the chondrocytes, the cells within the cartilage, are sparsely distributed.
  • In articular cartilage, the chondrocytes near the surface are flattened, unlike the more typical structure seen in deeper layers. In the deep layers, the chondrocytes form columns within a calcified matrix. The arrangement of collagen fibers in arches provides the cartilage with a strong structural framework to withstand pressure.
  • Type II collagen is the primary collagen type found in articular cartilage, although small amounts of type VI, IX, X, and XI collagens have also been identified. Articular cartilage is organized into different zones, including the superficial zone, middle transitional zone, deep zone, and calcified zone. Each zone is further divided into three regions: the pericellular region, territorial region, and interterritorial region.
  • The superficial zone, comprising 10-20% of the total cartilage thickness, contains type II and IX collagen fibers. It contains a higher concentration of chondrocytes that have a flattened appearance. This zone is in direct contact with the synovial fluid and serves to protect the deeper layers from external forces and stresses.
  • The middle zone, accounting for 40-60% of the cartilage thickness, acts as a transition between the superficial and deep zones. It consists of thicker collagen fibers and proteoglycans, with chondrocytes present in smaller quantities and a more spherical shape.
  • The deep zone provides the greatest resistance to compacting forces and represents approximately 30% of the total articular cartilage volume. It contains the highest content of proteoglycans and the least amount of water. The collagen fibers in this zone are arranged perpendicular to the surface, and the chondrocytes are organized in columns.
  • Finally, the calcified zone anchors the articular cartilage to the underlying bone by attaching the collagen fibers of the deep zone to the subchondral bone.
  • Articular cartilage plays a crucial role in joint function by providing a smooth and low-friction surface for joint movement. Its unique structure and composition enable it to withstand compressive forces and distribute loads effectively, contributing to the overall health and functionality of the joints.

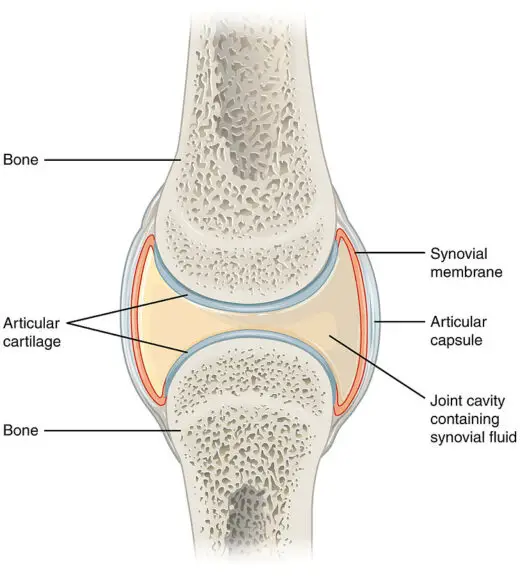

Articular cartilage in a synovial joint.
Articular cartilage in a synovial joint. Credit: OpenStax College, CC BY 3.0.

Difference Between Hyaline Cartilage and Other Types of Cartilage

Hyaline cartilage differs from other types of cartilage, such as elastic cartilage and fibrocartilage, in several aspects. Here are the key differences:

  1. Structure and Composition:
  • Hyaline Cartilage: It has a translucent and glossy appearance. The extracellular matrix is homogenous and basophilic, with a high concentration of chondroitin sulfate. Chondrocytes are small and arranged in groups of 2-8 cells. Type II collagen is the main collagen type present.
  • Elastic Cartilage: It has a glossy and yellow appearance. The extracellular matrix contains a dense network of elastin fibers, which provide strength and elasticity. Chondrocytes are larger and arranged in groups of 2-4 cells. Type II collagen is the main collagen type found.
  • Fibrocartilage: It appears white, dense, and opaque. The extracellular matrix is rich in collagen fibers, particularly type I collagen. Chondrocytes are small and located between the bundles of collagen fibers.
  1. Locations:
  • Hyaline Cartilage: It is found in the fetal skeleton until maturation, growth plates at the end of long bones, costal cartilage at the end of the ribs, nose, larynx, bronchi, articular cartilages, and the articular discs in sternoclavicular and temporomandibular joints.
  • Elastic Cartilage: It is located in the external part of the ears (pinna), epiglottis, laryngeal cartilages, and the auditory tube/eustachian tube.
  • Fibrocartilage: It is found in intervertebral discs, the pubic symphysis joint, articular discs in sternoclavicular and temporomandibular joints, the glenoid labrum in the shoulder blade, and the acetabular labrum in the hip joint.
  1. Main Collagen Type:
  • Hyaline Cartilage: It primarily consists of type II collagen.
  • Elastic Cartilage: It also contains type II collagen as the main collagen type.
  • Fibrocartilage: It is rich in type I collagen.
  1. Perichondrium:
  • Hyaline Cartilage: It is associated with a perichondrium, a connective tissue layer surrounding the cartilage.
  • Elastic Cartilage: It is also associated with a perichondrium.
  • Fibrocartilage: It lacks a perichondrium.

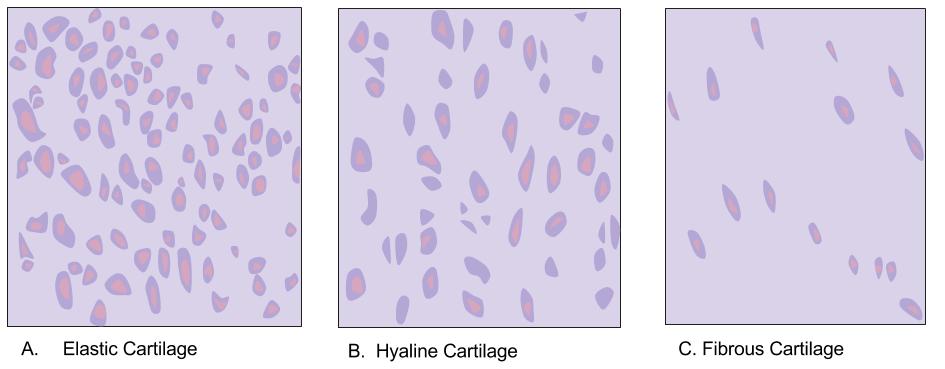

There are three different types of cartilage: elastic (A), hyaline (B), and fibrous (C).
There are three different types of cartilage: elastic (A), hyaline (B), and fibrous (C).

These differences in structure, composition, and location give each type of cartilage unique properties and functions within the body.

Function of Hyaline Cartilage

The function of hyaline cartilage is crucial for the proper functioning and protection of various parts of the body. Here’s an overview of its functions based on the provided content:

  1. Support and Flexibility: Hyaline cartilage provides structural support and flexibility to different body structures. It can be found in the nose, ears, and the attachment points of the ribs to the sternum. It gives these body parts their form while allowing some flexibility.
  2. Articular Surface Protection: When hyaline cartilage is present on the articular surfaces of bones, it is called articular cartilage. Its primary function is to act as a shock absorber and reduce friction between bones at joints. Articular cartilage provides a smooth surface for movement and helps withstand the pressure and friction associated with weight-bearing activities.
  3. Support in the Respiratory System: In the respiratory system, hyaline cartilage provides support to softer tissues, such as the trachea and larynx. It helps maintain an open position in these structures, allowing for the passage of air.
  4. Mechanical Support in Development and Growth: Hyaline cartilage plays a vital role in the development and growth of bones. It provides mechanical support to developing bones and contributes to their proper formation.

It is important to note that as individuals age, hyaline cartilage may deteriorate or wear away, leading to conditions like joint pain and swelling. The aging process can result in changes such as a decrease in the number of chondrocytes and proteoglycans in the cartilage, as well as alterations in the composition of the extracellular matrix.

Hyaline cartilage is susceptible to damage and disease due to its role as a shock absorber and continuous use in daily activities. However, its healing process is slow since it lacks a direct blood supply and the chondrocytes are unable to migrate to the damaged area. Damage to hyaline cartilage can result in the formation of scar tissue.

Additionally, the presence of chondroitin sulfate in the extracellular matrix of hyaline cartilage is important. It acts as an anti-inflammatory mediator, reducing pain and potentially slowing down cartilage breakdown. Conditions like osteoarthritis can occur when the cartilage wears away, leading to bone-on-bone contact and subsequent inflammation and pain.

In summary, hyaline cartilage performs essential functions such as providing support, flexibility, shock absorption, and protection to various structures in the body. Its deterioration or damage can have significant implications for joint health and overall mobility.


What is hyaline cartilage?

Hyaline cartilage is a type of connective tissue that is smooth, translucent, and glossy in appearance. It is the most common type of cartilage found in the body.

Where is hyaline cartilage located?

Hyaline cartilage is found in various parts of the body, including the nose, ears, trachea, larynx, bronchi, articular cartilages (joints), and growth plates at the ends of long bones.

What is the function of hyaline cartilage?

Hyaline cartilage provides support, flexibility, and cushioning to different body structures. It acts as a shock absorber in joints, gives form to the respiratory system, and supports developing bones.

How does hyaline cartilage differ from other types of cartilage?

Hyaline cartilage is different from elastic cartilage and fibrocartilage. It contains fewer fibers, has a smooth surface, and is relatively weaker compared to elastic cartilage and fibrocartilage.

Can hyaline cartilage regenerate or repair itself?

Hyaline cartilage has a limited capacity for self-repair due to its low cellularity and lack of blood vessels. Damage to hyaline cartilage can be challenging to heal and may require medical interventions.

What happens when hyaline cartilage wears away?

When hyaline cartilage wears away, it can lead to conditions like osteoarthritis, joint pain, swelling, and loss of joint function. The bones at the affected joint may rub against each other, causing discomfort and inflammation.

Is hyaline cartilage prone to age-related changes?

Yes, with age, hyaline cartilage undergoes changes such as a decrease in the number of chondrocytes (cartilage cells) and alterations in the composition of the extracellular matrix. These changes can contribute to cartilage deterioration and joint problems.

Can hyaline cartilage injuries be treated?

Treatment options for hyaline cartilage injuries include conservative measures like physical therapy, pain management, and lifestyle modifications. In more severe cases, surgical interventions such as cartilage repair or replacement procedures may be necessary.

Can hyaline cartilage be affected by diseases?

Yes, hyaline cartilage can be affected by conditions such as osteoarthritis, chondromalacia patellae, and other forms of cartilage degeneration. These diseases can cause pain, stiffness, and functional limitations.

Can hyaline cartilage be studied using histology?

Yes, histological techniques can be used to study the structure and composition of hyaline cartilage. Stains like hematoxylin and eosin (H&E) or specialized stains for collagen can help visualize the cartilage cells and matrix under a microscope.
