Parasporal Crystal Staining – Principle, Procedure and Results

In parasporal crystal staining, a suitably sporulated culture of Bacillus thuringiensis is prepared as a smear on a glass slide. The smear is then stained with Coomassie Brilliant Blue (CBB), washed with water and examined under a light microscope. The stained parasporal crystals can be observed as protein inclusions under the microscope.

Bacillus thuringiensis produces parasporal protein crystals during sporulation, along with the formation of endospores. The culture must reach a suitable stage of sporulation for the crystals to be detected.

This staining method is used for the preliminary screening of bacterial isolates that produce parasporal crystals. The presence of crystals indicates crystal production, but it cannot confirm the identity of the bacterial strain, the types of toxin proteins present or their insecticidal activity.

Objectives of Parasporal Crystal Staining

The following are the objectives of parasporal crystal staining:

To detect the presence of parasporal protein crystals in sporulated cultures of Bacillus thuringiensis.
To observe the shape and arrangement of parasporal crystals under a light microscope.
To differentiate the stained parasporal crystals from bacterial endospores and other cellular materials.
To examine the position of parasporal crystals in relation to the endospores.
To screen bacterial isolates for their ability to produce parasporal crystals.

Principle of Parasporal Crystal Staining

Sporulating Bacillus thuringiensis cell showing a separate endospore and parasporal crystal, their release during lysis, and blue staining of the crystal. — Parasporal protein crystals develop alongside endospores during sporulation. Coomassie Brilliant Blue staining increases the visibility of the protein-rich inclusions under a light microscope.

The principle of parasporal crystal staining is based on the binding of Coomassie Brilliant Blue (CBB) to the proteins present in the parasporal crystals. Coomassie Brilliant Blue is a protein-binding dye. It binds to the crystal proteins through ionic and hydrophobic interactions.

The parasporal crystals of Bacillus thuringiensis contain a large amount of protein, which retains the stain. During washing, the excess and unbound dye is removed from the smear. The stain bound to the crystal proteins remains, while the background staining is reduced. The stained parasporal crystals can be distinguished from the surrounding cellular material as distinct bodies under the microscope.

Requirements for Parasporal Crystal Staining

The following are the requirements for parasporal crystal staining:

Bacterial Culture – A suitably sporulated culture of Bacillus thuringiensis containing endospores and parasporal crystals. A suitable laboratory reference preparation can also be used.
Coomassie Brilliant Blue (CBB) Staining Solution – The staining solution contains 0.25% Coomassie Brilliant Blue, 50% ethanol and 7% acetic acid in water, as described by Sharif and Alaeddinoğlu (1988). Another method uses 0.133% CBB G-250 in 50% acetic acid. The selected formulation should be followed without mixing the two methods.
Glass Slides and Inoculating Tools – Clean glass slides, sterile inoculating loop or needle, dropper and staining jar for preparing and staining the bacterial smear.
Rinsing and Drying Materials – Clean water for washing the excess stain and blotting paper for drying the slides.
Light Microscope – A brightfield microscope fitted with a 100× oil-immersion objective and suitable immersion oil for examining the stained parasporal crystals.
Laboratory Safety Materials – Laboratory coat, gloves and protective eyewear. The bacterial culture should be handled using approved microbiological practices to avoid contamination and aerosol formation. Ethanol is flammable, and acetic acid should be handled carefully.

Procedure of Parasporal Crystal Staining

The following are the steps involved in parasporal crystal staining:

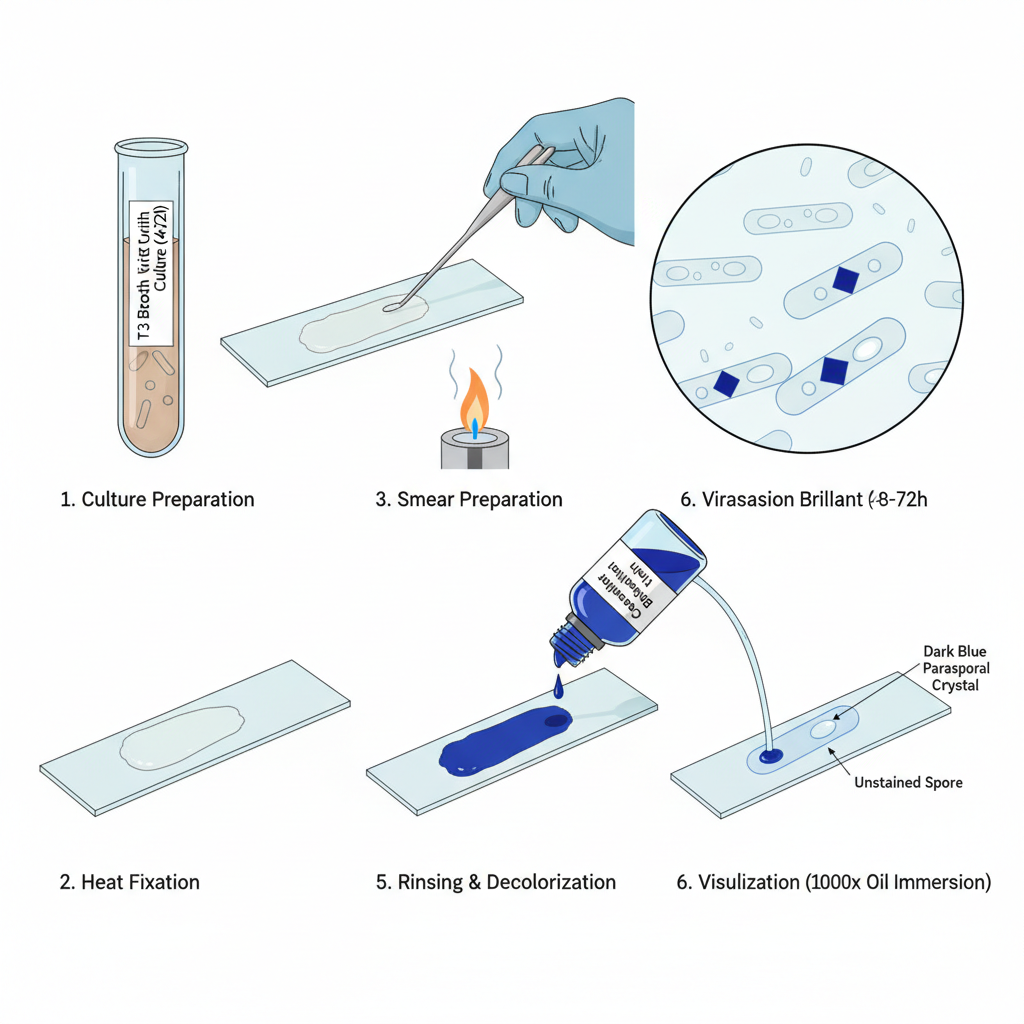

Sequential laboratory workflow showing sporulated bacterial culture, thin-smear preparation, drying, heat fixation, CBB staining, gentle washing and oil-immersion microscopy. — The Coomassie Brilliant Blue G-250 method uses a thin, fixed smear of sporulated B. thuringiensis culture, followed by staining, gentle washing and examination using a brightfield microscope.

Take a single colony of Bacillus thuringiensis from a pure culture and inoculate it into 5 mL of T3 broth.
The culture is incubated at 30°C with shaking at 200 rpm for 2–8 days.
Examine the culture under a phase-contrast microscope for the presence of spores and parasporal crystals.
The culture is used for staining when about 90% of the bacterial cells have lysed.
Take 10 µL of the culture on a clean glass slide and spread it to prepare a thin smear. A thick smear may cause the spores and crystals to overlap.
Allow the smear to air dry completely.
The dried smear is then heat-fixed carefully.
Prepare 0.133% Coomassie Brilliant Blue G-250 staining solution in 50% acetic acid.
Add the staining solution to cover the smear and leave it for 1 minute.
The excess stain is removed by washing the slide gently under running tap water.
Dry the stained slide using blotting paper.
Place a drop of immersion oil on the smear and examine it under a brightfield microscope using the 100× oil-immersion objective.
The parasporal crystals are seen as blue-stained bodies near the spores or separately in the smear. They may be bipyramidal, spherical, cuboidal or irregular in shape.
Examine other microscopic fields if the crystals are not seen clearly.

Results and Interpretation of Parasporal Crystal Staining

Appearance of Coomassie Brilliant Blue-Stained Crystals

After staining with Coomassie Brilliant Blue, the parasporal crystals appear blue or dark blue under the microscope. These crystals may be present near the bacterial spores or within the sporulated cells. Some crystals are also found separately after the bacterial cells have lysed.

The crystals may differ in their size and staining intensity. Some are small and lightly stained, which makes them difficult to observe. The amount of toxin protein cannot be determined from the intensity of staining.

The following differences may be observed between parasporal crystals, spores and other stained materials:

Material	Microscopic Appearance
Parasporal crystals	Blue or dark blue bodies of different shapes, found near the spores or separately.
Bacterial spores	Usually oval or elliptical bodies. They may be less intensely stained than the crystals.
Stain deposits and cellular debris	Irregular particles or clumps. Some may take up the blue stain and resemble small crystals.

Morphology of Parasporal Crystals

Four blue parasporal protein inclusions with bipyramidal, spherical, cuboidal and irregular shapes shown side by side for comparison. — Parasporal crystals of B. thuringiensis may be bipyramidal, spherical, cuboidal or irregular. Different isolates can produce crystals of different shapes, and some produce more than one form.

The parasporal crystals of Bacillus thuringiensis are found in different shapes and sizes. The following are the commonly observed forms:

Bipyramidal crystals have two pyramidal ends joined at the base.
Spherical crystals are round.
Cuboidal crystals are cube-shaped. They may appear square under the microscope.
Irregular crystals have no definite shape. Some are very small.

The shape of the crystals may differ from one bacterial isolate to another. An isolate may also produce more than one type of crystal.

The Cry or Cyt genes cannot be identified from the shape of the crystals. Molecular methods are required to identify these genes. The insecticidal activity and host range are determined by bioassays.

Interpretation of Positive and Negative Results

The stained smear is examined for the presence or absence of parasporal crystals. The results are interpreted as follows:

Four illustrated microscope fields comparing visible blue parasporal crystals, no detectable crystals, irregular stain deposits and a crowded smear. — Coomassie-stained parasporal crystals appear as distinguishable blue inclusions. Unclear observations may result from insufficient crystal formation, weak staining, stain deposits or overlapping sample material.

A positive result is obtained when distinct blue-stained parasporal crystals are seen in the smear. These are protein inclusions produced by the bacterial isolate. The presence of these crystals alone cannot confirm Bacillus thuringiensis.
If no parasporal crystals are observed, the result is negative. This may be due to insufficient sporulation of the bacterial culture. Very small crystals may also remain undetected.
Sometimes, stain deposits and cellular debris may also appear blue. These may be confused with parasporal crystals. In such cases, examine other microscopic fields or prepare another smear from a suitably sporulated culture.
Parasporal crystal staining is used for the preliminary identification of crystal-producing bacterial isolates. Further tests are required to confirm the identity of the bacteria.

Uses of Parasporal Crystal Staining

The following are the uses of parasporal crystal staining:

It is used to detect the presence of parasporal protein crystals in Bacillus thuringiensis cultures.
Used for the preliminary screening of crystal-producing bacterial isolates from soil and other environmental samples.
It is used to observe the different shapes of parasporal crystals, such as bipyramidal, spherical, cuboidal and irregular forms.
To examine the position of parasporal crystals in relation to the bacterial spores.
It helps in comparing the crystal morphology of different bacterial isolates.
Crystal-producing isolates can be selected for further studies, such as PCR analysis and insecticidal bioassays.

Advantages of Parasporal Crystal Staining

The following are the advantages of parasporal crystal staining:

It is a simple and rapid method for detecting parasporal crystals.
The staining can be carried out using a brightfield microscope. A phase-contrast microscope is not required.
It requires a small amount of bacterial culture and staining solution.
The stained parasporal crystals can be distinguished from bacterial spores under the microscope.
It helps in detecting small parasporal crystals which may be difficult to observe by phase-contrast microscopy.
Several bacterial isolates can be examined in a short time.
The shape, size and position of parasporal crystals can be observed in the stained smear.
It helps in selecting crystal-producing isolates for further molecular studies and insecticidal bioassays.

Limitations of Parasporal Crystal Staining

The following are the limitations of parasporal crystal staining:

It requires a suitably sporulated bacterial culture. The crystals may not be detected in young cultures.
Very small parasporal crystals may be difficult to observe under a light microscope.
Stain deposits and cellular debris may be confused with parasporal crystals.
A thick smear may cause overlapping of spores and crystals, making them difficult to distinguish.
Coomassie Brilliant Blue stains proteins and is not specific for Cry or Cyt toxins.
The presence of parasporal crystals alone cannot confirm the identity of Bacillus thuringiensis.
The types of Cry or Cyt proteins cannot be determined from the shape of the crystals.
It cannot determine the insecticidal activity or host range of the bacterial isolate.
The amount of crystal protein cannot be measured from the intensity of the blue stain.

Common Errors in Parasporal Crystal Staining

The common errors in parasporal crystal staining are as follows:

Using a young bacterial culture may give a negative result due to insufficient sporulation.
A thick smear may cause overlapping of bacterial spores and parasporal crystals. It also makes microscopic examination difficult.
The smear should be completely air-dried before heat fixation. Heating a wet smear may damage the bacterial cells.
Excessive heat fixation may distort the shape of spores and crystals.
Improper fixation may cause the bacterial material to be washed away during staining.
Incorrect concentration of Coomassie Brilliant Blue or staining time may affect the staining of parasporal crystals.
Insufficient washing leaves excess stain on the smear, making the crystals difficult to observe.
Washing the slide with a strong flow of water may remove the stained material.
Stain deposits and cellular debris may be confused with parasporal crystals.
Examining only one microscopic field may result in missing the crystals present in other areas of the smear.
The presence of blue-stained particles alone cannot confirm parasporal crystal production. Other stained materials may also be present in the smear.
