Beaker – Definition, Types, Features, and Applications

What is a Beaker?

A laboratory beaker is a cylindrical glass container with a flat bottom and a pouring spout, used to measure and mix liquids in scientific experiments. Beakers are an important piece of equipment in many scientific laboratories and play a crucial role in chemistry and other scientific fields.

The history of the beaker can be traced back to ancient Greece, where similar containers were used for mixing and measuring liquids. Over time, beakers evolved into the standardized form we know today, with a clearly marked scale for measuring volume.

In addition to measuring and mixing liquids, beakers are also used for heating and cooling substances and for observing reactions. Their importance lies in the accuracy and precision they provide, enabling scientists to perform reproducible experiments and accurately record their results.

Overall, the laboratory beaker is a simple but indispensable tool in the scientific community, essential for conducting experiments and advancing scientific knowledge.

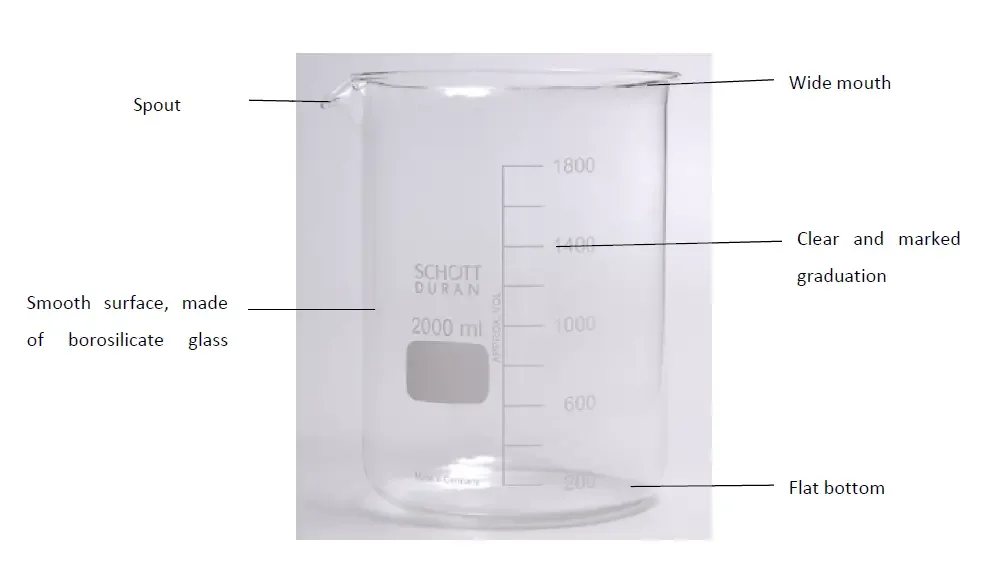

Features of Beaker

Features of Beaker
Features of Beaker

The following are some common features of laboratory beakers:

  1. Volume markings: Beakers usually have volume markings (e.g. milliliters or ounces) inscribed on the side, allowing for precise measurement of liquids.
  2. Flat bottom: Beakers have a flat bottom, providing stability when placed on a laboratory surface.
  3. Pouring spout: The beaker has a spout that facilitates the controlled pouring of liquids.
  4. Graduated scale: The graduated scale on the side of the beaker allows for accurate measurement of the volume of a liquid.
  5. Heat resistance: Many beakers are made of heat-resistant glass, allowing for heating of liquids or substances.
  6. Transparent: Beakers are usually made of transparent glass, making it easy to observe the contents of the beaker.
  7. Stackable: Beakers are designed to be stackable, conserving space in the laboratory.
  8. Versatile: Beakers are versatile, being used in a wide range of applications such as mixing, heating, cooling, and observing reactions.
  9. Durable: Beakers are made to be durable and withstand the demands of laboratory use.
  10. Standardized: Beakers are standardized in terms of size and volume, making them interchangeable between laboratories and ensuring reproducibility of results.

Types of Beakers Based on their Height and Shape

There are several types of beakers based on their height and shape, including:

  1. Low form beaker: A low form beaker has a short height and a wide mouth, making it ideal for heating and mixing liquids.
  2. Tall form beaker: A tall form beaker has a taller height and a narrower mouth, making it useful for holding and measuring larger volumes of liquids.
  3. Florence flask: A Florence flask is a type of beaker with a narrow neck and a round bottom, designed for heating and mixing liquids.
  4. Erlenmeyer flask: An Erlenmeyer flask is a type of beaker with a conical shape, a narrow neck, and a round bottom. It is commonly used for mixing and stirring liquids.
  5. Griffin beaker: A Griffin beaker has straight sides and a flat bottom, making it useful for accurately measuring the volume of a liquid.
  6. Graduate cylinder: A graduate cylinder is a type of beaker with a cylindrical shape, used for measuring precise volumes of liquids.
  7. Funnel beaker: A funnel beaker has a wide top and a narrow bottom, used for transferring liquids into containers with a narrow opening.

Each type of beaker has its own specific use and is designed for a particular purpose in the laboratory.

Types of Beaker Based on the Raw Material Used

There are several types of beakers based on the raw material used, including:

  1. Glass beakers: Glass beakers are the most commonly used type of beakers and are made of borosilicate glass, which is heat-resistant and chemically resistant.
  2. Plastic beakers: Plastic beakers are lightweight and break-resistant, making them a good option for use in areas where glass breakage is a concern.
  3. Stainless steel beakers: Stainless steel beakers are durable and resistant to corrosion, making them suitable for use in harsh laboratory environments.
  4. Pyrex beakers: Pyrex beakers are made of borosilicate glass and are specially designed for use in high-temperature applications.
  5. Polypropylene beakers: Polypropylene beakers are lightweight and chemically resistant, making them a good choice for use in the laboratory.
  6. Teflon beakers: Teflon beakers are made of Teflon, a non-reactive and chemically resistant material, making them ideal for use in harsh chemical environments.

Each type of beaker has its own advantages and disadvantages, and the choice of raw material will depend on the specific requirements of the laboratory and the experiments being performed.

How to use a Beaker?

To use a beaker in a laboratory setting, follow these steps:

  1. Choose the appropriate beaker size: Select a beaker that is the appropriate size for the volume of liquid you will be measuring, mixing, or heating.
  2. Label the beaker: Label the beaker with the contents and date, if necessary, to avoid mix-ups and to ensure proper disposal of hazardous materials.
  3. Pour the liquid: Carefully pour the liquid into the beaker, using a proper pouring technique to minimize spills and splashes.
  4. Measure the liquid: If measuring the liquid volume, use the graduated markings on the side of the beaker to determine the volume.
  5. Mix the liquid: If mixing the liquid, use a stirrer or other laboratory tool to mix the contents of the beaker.
  6. Heat the liquid: If heating the liquid, use a heat-resistant surface and follow safe heating practices, such as avoiding over-heating and using appropriate personal protective equipment.
  7. Observe the reaction: If observing a chemical reaction, carefully observe the reaction and make any necessary measurements or recordings.
  8. Pour or transfer the liquid: When finished, carefully pour or transfer the liquid to another container, as needed.
  9. Clean the beaker: Clean the beaker after use, rinsing with water and soap or using a laboratory cleaning solution.

By following these steps, you can safely and effectively use a beaker in a laboratory setting.

How to Clean and Maintain a beaker?

To clean and maintain a beaker, follow these steps:

  1. Determine the appropriate cleaning method: Choose a cleaning method based on the type of material the beaker is made of and the type of residue or stain that needs to be removed.
  2. Rinse the beaker: Rinse the beaker with water to remove any loose residue or dirt.
  3. Use soap and water: Wash the beaker with soap and water, using a brush or sponge if necessary to remove stubborn stains or residue.
  4. Use a laboratory cleaning solution: For more difficult-to-remove residue, use a laboratory cleaning solution, such as a glassware detergent or acid-based cleaner, following the manufacturer’s instructions.
  5. Rinse the beaker again: Rinse the beaker thoroughly with water to remove any cleaning solution.
  6. Dry the beaker: Dry the beaker completely, either air-drying or using a clean cloth or paper towel.
  7. Store the beaker: Store the beaker in a clean, dry location, avoiding stacking or crushing the beaker, which could damage the beaker or alter its shape.

By following these steps, you can effectively clean and maintain a beaker and ensure that it remains in good condition for use in a laboratory setting.

What are the Available Sizes of Beakers?

Beakers come in a variety of sizes to accommodate different volume requirements. Some common sizes are:

  1. 5 mL
  2. 10 mL
  3. 25 mL
  4. 50 mL
  5. 100 mL
  6. 250 mL
  7. 500 mL
  8. 1000 mL

These sizes are not absolute and may vary slightly between manufacturers. Some manufacturers offer custom sizes as well. The size of the beaker required will depend on the specific volume requirements of the experiment or procedure being performed.

Applications of Beaker

Beakers have a wide range of laboratory applications, including:

  1. Measuring liquids: Beakers are used to measure and hold liquids, with volume markings and a graduated scale to accurately measure the volume of a liquid.
  2. Mixing and stirring: Beakers are used to mix and stir liquids, especially with the use of a stirring rod.
  3. Heating liquids: Beakers can be used to heat liquids, with heat-resistant beakers suitable for high-temperature applications.
  4. Cooling liquids: Beakers can be used to cool liquids, with some beakers designed to be used with ice to provide rapid cooling.
  5. Observing chemical reactions: Beakers are used to observe chemical reactions, with transparent beakers allowing for visual observation of the reaction.
  6. Transfering liquids: Beakers can be used to transfer liquids into other containers, with funnel beakers being particularly useful for transferring liquids into containers with a narrow opening.
  7. Sampling and storage: Beakers can be used to store and sample liquids, with some beakers designed to be sealed to prevent evaporation or contamination.
  8. Calibration: Beakers can be used to calibrate laboratory equipment, with beakers of a known volume used to test the accuracy of liquid measurement equipment.

These are some of the most common applications of beakers in the laboratory, with the specific use of a beaker depending on the requirements of the experiment or procedure being performed.

Advantages of a Beaker

Beakers have several advantages, including:

  1. Accurate measurement: Beakers have volume markings and a graduated scale, allowing for accurate measurement of liquids.
  2. Versatility: Beakers can be used for a wide range of laboratory applications, including measuring, mixing, heating, cooling, observing chemical reactions, transferring liquids, sampling, and storage.
  3. Durability: Many beakers are made of heat-resistant and chemically resistant materials, making them durable and long-lasting.
  4. Easy to clean: Beakers are easy to clean, with some beakers being dishwasher safe.
  5. Cost-effective: Beakers are a cost-effective laboratory tool, with a wide range of sizes and materials available at an affordable price.
  6. Transparency: Many beakers are made of transparent materials, allowing for visual observation of liquids and chemical reactions.
  7. Safety: Beakers are generally safe to use, with some beakers designed with safety features such as a spout for easy pouring and a wide base for stability.
  8. Convenient: Beakers are lightweight and easy to handle, making them a convenient tool to have in the laboratory.

These are some of the key advantages of beakers, making them an essential tool for many laboratory procedures and experiments.

Limitations of a Beaker

Beakers also have some limitations, including:

  1. Limited temperature resistance: Some types of beakers may not be suitable for high-temperature applications, with heat-resistant beakers required for high-temperature experiments.
  2. Fragility: Some types of beakers, particularly glass beakers, can be fragile and prone to breakage, especially if dropped or subjected to thermal shock.
  3. Chemical reactivity: Some types of beakers may react with certain chemicals, leading to contamination or damage to the beaker.
  4. Volume limitations: Beakers have a limited volume capacity, with larger volumes requiring the use of a larger beaker or a different type of container.
  5. Graduation limitations: Beakers may have limitations in the precision of the volume markings and graduation scale, with more precise measurements requiring the use of a graduated cylinder or pipette.
  6. Uneven heating: Beakers may not provide uniform heating of liquids, with some areas of the liquid being hotter or cooler than others.
  7. Inaccurate measurements: The accuracy of measurements with a beaker may be impacted by the shape and size of the beaker, as well as the method of pouring the liquid.

These are some of the limitations of beakers, making it important to choose the appropriate type and size of beaker for a given laboratory application.

Precautions

When using beakers in a laboratory setting, there are some precautions to keep in mind to ensure safety and accuracy:

  1. Use appropriate materials: Choose a beaker made of a material that is suitable for the chemicals and temperatures being used in the experiment.
  2. Handle with care: Handle beakers with care to avoid breakage, especially when pouring liquids or heating the beaker.
  3. Use proper technique: Use a proper pouring technique to minimize spills and splashes when transferring liquids.
  4. Check for cracks or damage: Inspect beakers before use to check for cracks, chips, or other damage that could impact the accuracy of measurements or compromise safety.
  5. Label contents: Label the contents of the beaker to avoid mix-ups and to ensure proper disposal of hazardous materials.
  6. Use appropriate personal protective equipment: Wear appropriate personal protective equipment, such as gloves or a laboratory coat, when working with hazardous chemicals.
  7. Follow safe heating practices: Follow safe heating practices when using beakers to heat liquids, including using a heat-resistant surface and avoiding over-heating.

By following these precautions, you can ensure safe and accurate use of beakers in the laboratory.

FAQ

What is a beaker used for in a laboratory setting?

A beaker is used for measuring, mixing, heating, cooling, observing chemical reactions, transferring liquids, sampling, and storage.

What is the difference between a beaker and a graduated cylinder?

A beaker is typically wider and shorter than a graduated cylinder, with a flat bottom and straight sides. A graduated cylinder is more narrow and taller, with a cylindrical shape and graduation markings along the side.

What are the most common materials used to make beakers?

The most common materials used to make beakers are glass and plastic, although beakers can also be made of metal, ceramic, or other materials.

Are beakers safe to use in a laboratory setting?

Beakers are generally safe to use in a laboratory setting, but it is important to choose a beaker made of a material that is appropriate for the chemicals and temperatures being used in the experiment.

What is the maximum temperature a beaker can withstand?

The maximum temperature a beaker can withstand depends on the type of beaker and the materials used to make it. Some beakers are designed for high-temperature applications, while others are not.

How accurate are the volume markings on a beaker?

The accuracy of the volume markings on a beaker depends on the quality of the beaker and the scale used. Beakers with a higher quality scale and graduation markings are typically more accurate.

How do I clean a beaker?

Beakers can be cleaned by rinsing with water and soap, or by using a laboratory cleaning solution. Some beakers are also dishwasher safe.

How do I pour liquids into a beaker?

Pouring liquids into a beaker can be done by gently tilting the beaker and carefully pouring the liquid in. Some beakers also have a spout for easier pouring.

Can beakers be used for heating liquids?

Yes, beakers can be used for heating liquids, but it is important to choose a heat-resistant beaker and to follow safe heating practices.

Can beakers be used for storage?

Yes, beakers can be used for storage, but it is important to choose a beaker made of a material that is appropriate for the chemicals being stored and to label the contents of the beaker.

References

  1. https://www.borosil.com/site/assets/files/1112/beaker.pdf.
  2. https://www.labpeople.com/blog/laboratory-beakers-and-their-many-uses/.
