What is Diaphragm of a Microscope?

  • The diaphragm of a microscope, often referred to as the iris diaphragm, plays a crucial role in the functioning of this essential scientific instrument. To fully understand its significance, we must first grasp the two fundamental processes required for a microscope to operate effectively. Firstly, the light must be directed onto the specimen that we intend to observe, and secondly, this light must be collected and magnified to enable a clear and detailed view.
  • The diaphragm, along with the condenser, is a vital component responsible for managing the incoming light during the first stage of the microscopy process. Its primary function is to control both the quantity and the shape of the light passing through the condenser lens and eventually reaching the specimen. This is achieved by adjusting the diaphragm blades, which resemble the iris of a human eye, allowing them to expand and contract as needed.
  • What makes the diaphragm truly noteworthy is its ability to fine-tune the amount of light that reaches the specimen. By controlling the aperture size, the diaphragm determines the intensity of illumination, which can have a significant impact on the final image quality. A smaller aperture will create a higher level of contrast and depth of field, making details more distinct. Conversely, a larger aperture will allow more light to pass through, resulting in brighter images.
  • The success of a microscopy experiment often hinges on understanding how to manipulate the diaphragm effectively. Adjusting the aperture size can enhance the resolution and clarity of the observed specimen, leading to more accurate observations and analysis. However, improper use of the diaphragm can result in an overabundance of light, leading to glare or washed-out images, or insufficient light, making the specimen difficult to distinguish.
  • To achieve optimal results, one must consider the type of diaphragm and the specific settings applied. Different microscopes may have slightly varying diaphragm mechanisms, so it is crucial to be familiar with the equipment you are using. Moreover, the nature of the specimen being observed may require specific lighting conditions for the most accurate representation.
  • In conclusion, the diaphragm of a microscope is a crucial component that controls the light illuminating the specimen, influencing the overall image quality. Understanding how to use it effectively allows scientists and researchers to obtain the most accurate and detailed observations. By mastering the nuances of the diaphragm, one can unlock the full potential of the microscope, opening up new realms of discovery and advancing our understanding of the microscopic world.

History of Diaphragm

  • The history of the diaphragm dates back to the 16th century when Venetian nobleman Daniele Barbaro described its use in a camera obscura as a drawing aid. He noted that covering the lens, leaving only a circumference in the middle, resulted in a more vivid picture.
  • In 1762, mathematician Leonhard Euler mentioned the use of diaphragms in telescopes to exclude extraneous light, thus improving the telescope’s performance. Later, in 1867, Désiré van Monckhoven differentiated between “stops” and “diaphragms” in photography, emphasizing their distinct functions. While the terms were synonymous in optics, the photographic community adopted the distinction.
  • The inventor of the iris diaphragm remains unknown, but some credit Joseph Nicéphore Niépce for its creation around 1820. J. H. Brown, a member of the Royal Microscopical Society, is attributed to inventing an improved iris diaphragm by 1867.
  • Other diaphragm types also emerged during this period. In 1856, M. Noton introduced an adjustable cat-eye diaphragm consisting of two sliding squares, while John Waterhouse developed Waterhouse stops in 1858.
  • The Hamburg Observatory-Bergedorf’s Great Refractor, constructed in the early 1910s, featured an innovative iris diaphragm that allowed the aperture to be adjusted from 5 to 60 cm (~23.6 inches).
  • Over time, the concept of diaphragms evolved and became widely used in various optical instruments, including microscopes and cameras. Today, diaphragms play a crucial role in controlling light and enhancing image quality in modern microscopy and photography. Although the inventor of the iris diaphragm remains a mystery, its practical application and impact on optical instruments continue to be invaluable contributions to the field of optics and scientific exploration.

Definition of Diaphragm of a Microscope

The diaphragm of a microscope is a component that controls the amount of light that passes through the specimen being observed. It is typically located between the light source and the stage, and consists of a series of adjustable blades or a rotating disc with different-sized apertures. By adjusting the diaphragm, the user can regulate the intensity and size of the light beam, which in turn affects the contrast, resolution, and depth of field of the image seen through the microscope. This makes it an essential tool for optimizing the visibility of different types of specimens.

Purpose of Diaphragm of a Microscope

The diaphragm of a microscope serves several important purposes:

  1. Light Control: It regulates the amount of light that reaches the specimen. This is crucial because too much light can cause glare and too little light can make the image too dim.
  2. Image Contrast: By adjusting the diaphragm, you can enhance or reduce the contrast of the image. Higher contrast often makes it easier to distinguish different features of the specimen.
  3. Resolution Enhancement: Proper light adjustment through the diaphragm can improve the resolution of the image. This means finer details of the specimen become more visible and distinguishable.
  4. Depth of Field: The diaphragm can affect the depth of field, which is the extent of the object space within which the objects appear acceptably sharp in the image. A smaller aperture (less light) increases the depth of field, making more of the specimen in focus at one time.
  5. Reducing Specimen Damage: For light-sensitive specimens, reducing the light intensity with the diaphragm can help prevent damage or fading.
  6. Improving Viewing Comfort: For the user, especially during prolonged periods of observation, controlling the light can reduce eye strain and improve comfort.

Diaphragm Function and Purpose

Diaphragm Function and Purpose
Diaphragm Function and Purpose

The diaphragm in a microscope serves a crucial function, primarily focusing on altering the angular aperture of the cone of light that emanates from the condenser. This cone of light’s size plays a vital role, as it must align with the optimal numerical aperture of the objective lens to achieve the best image quality.

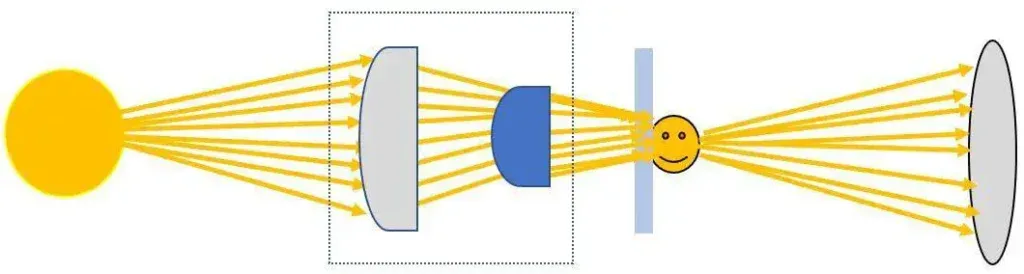

Imagine the process of light traveling through the microscope’s components. The light source generates the initial illumination, followed by the condenser lenses that converge and focus the light onto the sample or glass slide. The objective lens, located on the far right, then magnifies this focused light to create the final image. However, a mismatch between the size of the cone of light and the numerical aperture of the objective lens can lead to suboptimal image quality.

Here’s where the diaphragm comes into play. By adjusting the diaphragm, we can control the amount of light that reaches the specimen. This becomes particularly important when dealing with sensitive specimens or situations where the image appears excessively bright. Without changing the brightness of the light source itself, the diaphragm allows us to regulate the amount of light entering the condenser and, consequently, change the shape of the cone of light.

Diaphragm Function and Purpose

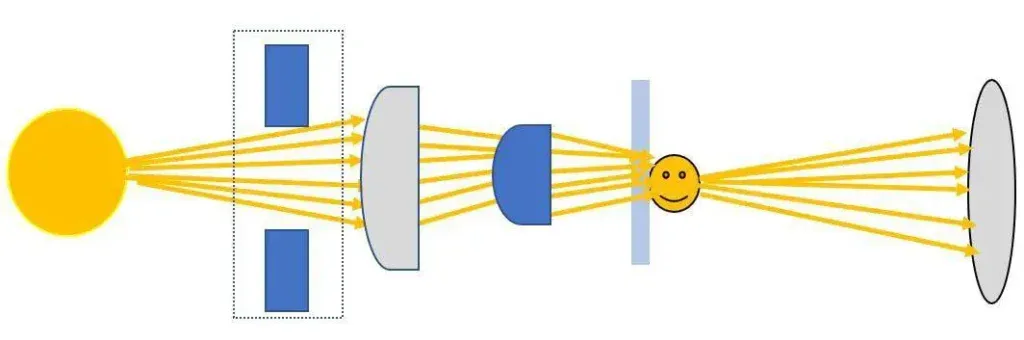

To illustrate this point, imagine a scenario with an unhindered light path as described earlier. In this setup, the diaphragm is utilized to limit the amount of light traveling through the condenser. This effectively blocks out excess light and enables precise control over the illumination of the specimen.

Conversely, if we allow more light to pass through the diaphragm, we can observe a noticeable difference in the image’s brightness and clarity. This straightforward mechanism offers a practical way to manipulate the amount of light without directly altering the light source itself.

Diaphragm Function and Purpose

In summary, the diaphragm’s primary purpose in a microscope is to regulate the amount of light and modify the shape of the cone of light that illuminates the specimen. By doing so, it ensures that the light matches the optimal numerical aperture of the objective lens, resulting in enhanced image quality and more accurate observations. The diaphragm’s ability to control the light effectively opens up a world of possibilities in microscopy, allowing researchers and scientists to achieve superior results and gain valuable insights into the microscopic realm.

Types of Diaphragms

1. Disc Diaphragm

  • The disc diaphragm is a less commonly encountered but highly useful variant of diaphragms used in certain microscopes. Its design resembles that of a spinning wheel with various diameter openings, providing a simple and efficient means of controlling the amount of light that passes through the microscope.
  • Unlike the more conventional iris diaphragm, which adjusts the aperture size through expansion and contraction of blades, the disc diaphragm offers discrete choices by presenting multiple holes of different sizes. This straightforward mechanism allows users to easily regulate the illumination according to their specific requirements.
  • Suppose a brighter image is desired. In that case, one can simply switch the disc diaphragm to the position with the larger hole, enabling more light to pass through the optical system. On the other hand, if the specimen appears too brightly illuminated or if a reduction in light intensity is necessary for certain observations, switching to a smaller-sized hole accomplishes this with ease.
  • The disc diaphragm’s advantage lies in its simplicity and convenience. By providing predetermined options for light adjustment, users can quickly adapt to varying lighting conditions and specimen sensitivities without the need for fine-tuning or incremental adjustments. This can be particularly beneficial when dealing with time-sensitive experiments or delicate samples that require swift modifications to achieve the desired image quality.
  • However, it is essential to note that while the disc diaphragm offers straightforward control over light intensity, it may not offer the same level of precision as the iris diaphragm. The iris diaphragm’s continuous adjustment allows for more subtle changes in illumination, whereas the disc diaphragm’s discrete settings limit the flexibility in fine-tuning the light passing through the microscope.
  • Despite this limitation, the disc diaphragm serves as a valuable tool in specialized microscopy applications. Its user-friendly nature and ability to swiftly adapt light levels make it a preferred choice in certain research scenarios. As with any microscopy technique, understanding the capabilities and limitations of the disc diaphragm ensures its effective and judicious use in obtaining the most accurate and detailed observations.
Disc Diaphragm
Disc Diaphragm

2. Aperture Iris Diaphragm

  • The aperture iris diaphragm represents a more sophisticated and commonly found type of diaphragm, particularly in advanced and higher-end microscopes. Its name “iris” is derived from the similarity in function to the iris of our eyes. Just as our eyes’ iris adjusts to control the amount of light entering the retina’s cones and rods, the iris diaphragm performs a similar task in the microscope.
  • Imagine the scenario of being outside in the dark for different durations. When exposed to darkness for a longer time, our iris slowly expands, allowing more light to enter our eyes and improving our ability to see in low-light conditions. Similarly, the iris diaphragm in a microscope controls the amount of light that reaches the specimen by adjusting itself to be larger or smaller.
  • The aperture iris diaphragm is positioned closer to the condenser system of the microscope, with the condenser often situated directly on top of the iris diaphragm. It offers precise control over the amount of light passing through by employing a sliding switch along a groove, which allows for varying degrees of diaphragm opening and closure.
  • One of the critical functions of the aperture iris diaphragm is its association with the concept of numerical aperture. Numerical aperture determines the microscope’s ability to resolve fine details and is influenced by both the objective lens and the condenser. By adjusting the size of the diaphragm’s aperture, users can modify the numerical aperture, thus impacting the resolution and image quality.
  • Additionally, the aperture iris diaphragm plays a role in controlling the contrast of the microscope’s images. Contrast refers to the distinction between light and dark regions within an image. Higher contrast enhances the visibility of fine details and allows for better differentiation of similar colors or structures. In specific cases, such as when observing highly transparent specimens, users may need to close the diaphragm more than usual to achieve the necessary contrast for detailed observation.
  • In summary, the aperture iris diaphragm is a sophisticated and versatile component found in advanced microscopes. Its similarity to the iris of the human eye in controlling light intake makes it an aptly named feature. By skillfully adjusting the diaphragm’s aperture, researchers can optimize the numerical aperture and contrast, leading to improved image resolution and the ability to discern finer details in various specimens. The aperture iris diaphragm’s intricate control over light is instrumental in enabling groundbreaking discoveries and facilitating cutting-edge research in the microscopic world.
Iris diaphragm
Iris diaphragm

3. Field Diaphragm

  • The field diaphragm is a diaphragm located in proximity to the light source of the microscope, serving a distinct purpose from other diaphragms. While it operates in a manner similar to others by controlling the amount of light, its primary function is to regulate the size of the field of view in the resulting image.
  • Imagine the process of light traveling through the microscope. The field diaphragm, positioned close to the light source, has the capability to adjust its aperture size. When fully open, it allows the maximum amount of light to pass through, resulting in a broader and more extensive field of view in the final image. Conversely, when almost closed, it restricts the amount of light reaching the microscope’s optical system, leading to a smaller and more focused field of view.
  • The importance of the field diaphragm lies in its ability to control the area of the specimen that is visible in the image. By adjusting the diaphragm’s aperture, researchers can optimize the size of the field of view to suit their specific needs and objectives. This feature proves especially valuable when observing specimens of varying sizes or when focusing on specific regions of interest within the sample.
  • Unlike other diaphragms, such as the aperture iris diaphragm, the field diaphragm does not directly influence the contrast or quality of light entering the microscope. Instead, its role is primarily limited to controlling the spatial extent of the observed field.
  • In summary, the field diaphragm, located near the microscope’s light source, operates to adjust the field of view in the resulting image. By modifying the diaphragm’s aperture, researchers can regulate the size of the visible area, providing flexibility and precision in observing specimens of different dimensions. While it does not directly impact the contrast or quality of light, its contribution to shaping the field of view is a crucial aspect of achieving accurate and comprehensive microscopy observations.
Iris diaphragm
Iris diaphragm

How to Use the Diaphragm

To use the diaphragm effectively on a microscope and achieve the best image quality, follow these steps:

  1. Start with Low Power: Begin your observation by using the lowest magnification objective lens. Open the diaphragm fully to allow maximum light to pass through the specimen. This provides a bright and evenly illuminated view of the specimen.
  2. Gradually Increase Magnification: As you move to higher magnification objectives, adjust the diaphragm accordingly to maintain optimal lighting conditions. Higher magnifications may require a smaller aperture to control the amount of light and prevent overexposure, which could lead to washed-out images or glare.
  3. Find the Right Balance: Achieve the right balance between light intensity and contrast. While a wider aperture increases brightness, it may reduce contrast and make fine details less visible. On the other hand, a smaller aperture can enhance contrast but might result in darker images. Experiment with different diaphragm settings to find the perfect balance for your specific observation needs.
  4. Consider Depth of Field: The diaphragm also influences the depth of field, affecting which areas within the specimen appear in focus. For a shallower depth of field and selective focus, use a larger aperture. For greater depth of field and sharpness throughout the specimen, close down the aperture. Adjusting the diaphragm helps emphasize specific structures or details of interest within the sample.
  5. Observe Specimen Characteristics: Pay attention to the characteristics of the specimen you are observing. Transparent or delicate samples might require a smaller aperture to enhance contrast and visibility, while dense or opaque specimens might benefit from a wider aperture to allow more light to pass through.
  6. Avoid Overexposure: Be cautious not to overexpose the specimen, especially when using high magnification objectives. Too much light can result in excessive brightness, leading to loss of details and image clarity. Adjust the diaphragm to control the light intensity and prevent overexposure.
  7. Practice and Fine-Tune: Becoming proficient in using the diaphragm takes practice. As you gain experience, you will develop a better understanding of how different diaphragm settings impact your observations. Continuously fine-tune the diaphragm to optimize image quality and achieve the best results for your microscopy needs.

By following these steps and mastering the use of the diaphragm, you can enhance your microscopy experience and obtain clear, well-lit, and detailed images of various specimens. Remember that the diaphragm is a powerful tool for controlling light and contrast, making it essential for achieving accurate and meaningful observations in microscopy.

Brightness Vs. Iris Diaphragm

  • When considering brightness in microscopy, it is crucial to understand the role of the iris diaphragm and its relationship with the light source. The iris diaphragm, while significant in controlling the illumination, should not be mistaken as the sole determinant of light intensity.
  • The true responsibility for controlling the light’s intensity lies with the actual light source and its settings on the condenser. The light source, usually an adjustable lamp, dictates the overall brightness of the illumination. The intensity can be modified by altering the lamp’s output, such as using a dimmer switch or changing the lamp’s power.
  • On the other hand, the iris diaphragm operates differently. Its primary function is to control the width of the light beam that passes through the specimen. By adjusting the aperture size, the diaphragm regulates the amount of light that illuminates the sample. A wider aperture allows more light to pass, resulting in increased illumination of the specimen and a brighter image. Conversely, closing the aperture restricts the light, leading to reduced illumination and a darker image.
  • It is essential to recognize that the iris diaphragm’s role is limited to determining the amount of light that reaches the specimen. It does not directly influence the light’s intensity; that responsibility lies with the light source. The iris diaphragm’s function is significant in adjusting the brightness by controlling the light’s flow, but it does not alter the light’s actual intensity.
  • In summary, the iris diaphragm and the light source work together to determine the overall brightness in microscopy. While the light source dictates the light’s intensity, the iris diaphragm fine-tunes the brightness by controlling the width of the light beam that illuminates the specimen. Understanding this relationship enables researchers to achieve optimal illumination conditions, leading to clearer and more detailed observations in their microscopy endeavors.

Magnification Vs. Iris Diaphragm

  • The relationship between magnification and the iris diaphragm plays a vital role in achieving optimal image quality during high and intermediate magnification microscopy.
  • As magnification levels increase, the amount of light passing through the microscope’s optical system decreases. This reduction in light is a natural consequence of the increased magnification, which spreads the same amount of light over a larger area, resulting in lower illumination intensity.
  • To compensate for this decrease in light, the iris diaphragm comes into play. By adjusting the aperture size, the diaphragm can control the amount of light that reaches the specimen. When using higher magnification levels, it becomes essential to open the iris diaphragm wider, allowing more light to pass through. This wider aperture ensures that the specimen receives sufficient illumination, enabling the microscope to capture a clear and detailed image.
  • On the other hand, when using lower magnification levels, the light intensity is relatively higher due to the broader field of view. In such cases, it may be necessary to close the iris diaphragm slightly to prevent excessive illumination, which could lead to overexposure and a washed-out image.
  • The iris diaphragm’s ability to manage contrast by controlling the specimen’s illumination is particularly critical during high and intermediate magnification. By maintaining a proper balance between the aperture size and the magnification level, researchers can achieve the optimal image brightness and contrast required for accurate observations and detailed analysis of specimens.
  • In summary, the iris diaphragm plays a crucial role in ensuring the proper illumination of specimens at different magnification levels. As magnification increases, the diaphragm’s aperture must be widened to compensate for the reduced light passing through the microscope’s optical system. By skillfully adjusting the iris diaphragm, researchers can achieve the ideal balance between magnification and illumination, leading to enhanced image quality and facilitating a deeper understanding of the microscopic world.

Iris diaphragms versus other types

  • Iris diaphragms offer several advantages over other types of diaphragms due to their unique design and functionality.
  • One significant advantage of iris diaphragms is their ability to continuously vary the size of the aperture, similar to the human eye’s iris. The adjustable blades forming a circle in the iris diaphragm allow precise control over the amount of light passing through the lens. This flexibility in aperture size gives photographers and videographers the freedom to fine-tune the exposure and depth of field, resulting in more creative control over the final image or video.
  • In contrast, older diaphragm types, such as Waterhouse stops, were less versatile since they required interchangeable diaphragms, limiting the adjustment possibilities compared to the iris diaphragm. The iris diaphragm’s continuous variation facilitates smoother transitions between different apertures and allows for precise exposure adjustments, making it a preferred choice for modern cameras and lenses.
  • The number of blades in the iris diaphragm also affects the appearance of out-of-focus areas in the image, known as bokeh. Lenses with curved blades tend to produce rounder and softer bokeh, enhancing the aesthetic appeal of the background blur. Additionally, the shape of the iris opening can be modified in some lenses to create unique effects, further expanding the creative possibilities for photographers.
  • Another advantage of the iris diaphragm is its ability to simulate the iris of the human eye, offering a more natural and pleasing appearance to the out-of-focus points of light. In contrast, diaphragms with polygonal openings, such as those with straight blades, can result in polygonal shapes in the bokeh.
  • Furthermore, some modern automatic point-and-shoot cameras forego the use of a physical diaphragm and instead employ an automatic ND filter to simulate aperture changes. While this approach helps maintain a compact design, it lacks the depth of field control provided by a real diaphragm. The iris diaphragm’s ability to adjust depth of field by opening or closing the aperture allows photographers to achieve desired background blur and control the focus of both foreground and background elements.
  • In conclusion, iris diaphragms offer versatile and precise control over exposure, depth of field, and bokeh, making them a preferred choice in modern photography and videography. Their ability to simulate the human eye’s iris and create natural out-of-focus areas adds an artistic touch to images, enhancing the overall visual appeal. With advancements in diaphragm design and technology, photographers and videographers continue to benefit from the flexibility and creative possibilities offered by the iris diaphragm.

Functions of the Diaphragm

The diaphragm in a microscope serves several essential functions that significantly impact the quality and precision of observations.

  • Light Control: One of the primary functions of the diaphragm is to regulate the amount of light that reaches the specimen. By adjusting the diaphragm’s aperture size, users can control the intensity of illumination. A wider aperture allows more light to pass through, resulting in brighter illumination but reduced contrast. Conversely, a narrower aperture restricts the amount of light, leading to increased contrast and sharper details in the specimen. This fine-tuning of light control is crucial for obtaining clear and well-defined images.
  • Depth of Field: The diaphragm also plays a key role in determining the depth of field in a microscopic image. Depth of field refers to the range of focus within a specimen, where all objects within that range appear sharp and in focus. Adjusting the diaphragm’s aperture size influences the depth of field, allowing users to emphasize specific areas of interest while de-emphasizing the surrounding background. By carefully controlling the diaphragm, researchers can achieve a shallow depth of field, isolating specific structures within the specimen, or a greater depth of field, capturing more details throughout the entire sample.
  • Contrast Enhancement: Additionally, the diaphragm contributes to enhancing contrast in the image. Properly adjusting the aperture size helps to optimize the balance between light and dark areas, resulting in improved contrast and better distinction between various structures within the specimen. This contrast enhancement is particularly valuable when observing samples with intricate or subtle details.
  • Image Resolution: The diaphragm’s role in controlling light and contrast directly impacts the image resolution. By achieving the ideal balance of illumination and contrast, researchers can obtain high-resolution images with clear, well-defined details. This is particularly important when studying fine structures or conducting precise measurements in microscopic samples.
  • Elimination of Glare: Another function of the diaphragm is to eliminate glare and unwanted reflections. By controlling the intensity and angle of light, the diaphragm helps to reduce glare, ensuring that the specimen’s true features are visible without distracting reflections.

How to Maintain Microscope and Diaphragm Cleanliness?

Maintaining proper cleanliness of a microscope and its diaphragm is crucial for ensuring accurate and clear observations. Here are steps to clean and maintain these components:

General Microscope Maintenance

  1. Regular Dusting: Use a soft, lint-free cloth or a special lens brush to dust off the microscope regularly. Avoid using regular tissue paper as it can scratch the lenses.
  2. Handling Lenses: When cleaning lenses (objective and eyepiece), use lens paper or a microfiber cloth. Gently wipe in a circular motion. You can use a lens cleaning solution if needed, but avoid excessive liquid.
  3. Avoid Touching Lenses: Touching the lenses with fingers should be avoided as oils and dirt from the skin can smudge them.
  4. Cover When Not in Use: Always cover the microscope with a dust cover when not in use.

Diaphragm Cleaning

  1. Visual Inspection: First, inspect the diaphragm for any visible dust or debris.
  2. Gentle Cleaning: If the diaphragm is dirty, gently wipe it with a soft, dry cloth. If it’s not easily reachable or if it’s delicate, use a blower brush to remove dust.
  3. Avoid Harsh Chemicals: Do not use harsh chemicals or solvents on the diaphragm, as these can damage it.
  4. Adjustment Check: After cleaning, make sure the diaphragm still adjusts smoothly. If it’s sticky or hard to move, consult a professional for maintenance.

Additional Tips

  • No Disassembly: Avoid disassembling parts of the microscope for cleaning unless you are trained in microscope maintenance.
  • Storage: Store the microscope in a dry, cool place to prevent mold and fungal growth.
  • Regular Check-ups: Schedule regular professional maintenance and check-ups for the microscope to ensure its optimal performance.
  • Handle with Care: Always handle the microscope gently to avoid misalignment of optical components.
  • Training: If multiple people use the microscope, ensure everyone is trained in proper handling and cleaning techniques.

Advantages of Diaphragms

  • Regulation of Light Intensity – The primary function of diaphragms in microscopes is to control the intensity of light that reaches the specimen. This is pivotal in microscopy as the proper light intensity is crucial for obtaining high-quality images. Overly bright light can cause glare and obscure fine details, while insufficient light leads to dim and unclear images. Therefore, the diaphragm’s role in regulating light ensures that the specimen is illuminated optimally, enhancing the clarity and detail of the observed image.
  • Enhancement of Image Contrast and Resolution – Besides controlling light intensity, diaphragms play a significant role in enhancing image contrast and resolution. By adjusting the aperture size, the diaphragm alters the amount of light and its path through the specimen. This adjustment is crucial for distinguishing fine details and structures within the specimen, thus improving the resolution of the image. High contrast achieved through proper diaphragm adjustment is essential for differentiating between various components of the specimen.
  • Types of Diaphragms and Their Specific Advantages
    • Disc Diaphragm: Known for its simplicity and cost-effectiveness, the disc diaphragm is ideal for basic microscopy applications. It features a rotating wheel with different-sized apertures, allowing for straightforward adjustments in light intensity. This type of diaphragm is particularly advantageous for educational settings and beginner users, offering ease of use and affordability.
    • Aperture Iris Diaphragm: The aperture iris diaphragm provides meticulous control over light intensity and shape. Its design, comprising adjustable blades, allows for precise tuning of the light path, which is vital for advanced microscopy techniques. This diaphragm type is favored in professional settings where exact illumination and high-resolution imaging are required.
    • Field Diaphragm: This diaphragm type combines the benefits of both affordability and functional versatility. It enables users to adjust the field of view, focusing the light only on the area of interest. This capability is particularly beneficial when examining specimens of varying sizes or when specific areas within a sample need to be highlighted.

Disadvantages of Diaphragms

  • Limited Aperture Adjustment in Disc and Field Diaphragms – A notable disadvantage of the disc and field diaphragms lies in their limited aperture adjustment capabilities. Unlike the aperture iris diaphragm, which allows for precise, incremental adjustments through its adjustable blades, the disc and field diaphragms offer only fixed aperture sizes. This limitation restricts users from fine-tuning the light precisely to their specific requirements. Consequently, in certain microscopy applications, this lack of precise control may lead to suboptimal image quality, particularly when observing specimens that require nuanced light adjustments.
  • Cost Consideration of Aperture Iris Diaphragms – The aperture iris diaphragm, while superior in terms of precision and control, comes with a higher cost implication. This type of diaphragm is generally found in more advanced and professional-grade microscopes, making it less accessible for beginners or those with budget constraints. This cost factor can be a significant disadvantage for educational institutions, hobbyists, or researchers with limited funding, as it may limit their access to microscopes equipped with this highly precise diaphragm.
  • Balancing Advantages with Limitations – Despite these disadvantages, it is crucial to recognize the overall efficacy of diaphragms in enhancing the microscopy experience. The ability of diaphragms to control light is fundamental to obtaining clear, detailed images in microscopy. However, when selecting a microscope, one must consider these limitations alongside the advantages. While the disc and field diaphragms offer affordability and ease of use, they lack the fine-tuning capabilities of the aperture iris diaphragm. Conversely, the aperture iris diaphragm, despite its higher cost, provides unparalleled control over light, essential for advanced microscopic analysis.

FAQ

What is the diaphragm of a microscope, and what does it do?

The diaphragm of a microscope, also known as the iris diaphragm, is a circular device positioned close to the light source and condenser. Its primary function is to control the amount and shape of light passing through the optical system, thereby influencing the illumination and contrast of the specimen.

How does the diaphragm affect image quality?

By adjusting the diaphragm’s aperture size, users can control the amount of light that reaches the specimen. A wider aperture allows more light, resulting in brighter illumination but reduced contrast. Conversely, a narrower aperture enhances contrast but decreases overall brightness.

What types of diaphragms are commonly found in microscopes?

The most common types of diaphragms are the aperture iris diaphragm, disc diaphragm, and field diaphragm. Each type offers specific advantages and limitations in controlling light and enhancing image quality.

How do I adjust the iris diaphragm?

To adjust the iris diaphragm, simply turn it counterclockwise to open the aperture and allow more light through, or clockwise to close it and reduce the light reaching the specimen.

Can I use the diaphragm to change the brightness of the microscope’s light source?

No, the diaphragm does not control the light source’s intensity. The actual light source and its settings on the condenser determine the brightness.

Can I use any diaphragm with any microscope?

Most modern microscopes come equipped with an iris diaphragm. However, the availability of other types, such as disc or field diaphragms, may vary depending on the microscope model and manufacturer.

How does the diaphragm influence image focus?

The diaphragm’s impact on image focus is indirect. By controlling contrast and illumination, it can influence how well-defined the specimen appears in the final image.

Can I achieve higher magnification without affecting the illumination using the diaphragm?

When using higher magnification levels, less light passes through the microscope’s optical system. To compensate for this decrease in light, the iris diaphragm must be opened wider to maintain proper illumination.

What are the advantages of using the aperture iris diaphragm over other types?

The aperture iris diaphragm offers maximum control over light and image quality. It allows precise adjustments, leading to optimal photo image quality and is particularly favored in advanced microscopes for its precision.

Is the diaphragm necessary for microscopy, or can I do without it?

The diaphragm is a crucial and necessary part of a microscope. Without it, controlling light and achieving optimal image quality would be challenging, making the microscope’s performance significantly less effective.
