Ecological Pyramids – Definition, Types, Examples, Importance, Limitations

What are Ecological Pyramids?

  • Ecological pyramids, also known as trophic pyramids, are graphical representations that depict the relationships and interactions between various living organisms across different trophic levels in an ecosystem.
  • The concept of the ecological pyramid was first introduced by Charles Elton, who proposed the pyramid of numbers. Later, G.Evylen Hutchinson and Raymond Lindeman expanded on this idea, introducing the pyramid of energy or productivity.
  • The structure of an ecological pyramid resembles that of ancient Egyptian pyramids, with a broad base that narrows towards the apex. The base represents the producers, which are typically plants and algae that generate energy through photosynthesis.
  • As one moves up the pyramid, the subsequent levels represent primary consumers (herbivores), followed by secondary consumers (carnivores), and so on, culminating with apex predators at the top. Each level of the pyramid signifies a trophic level, and the flow of energy moves upward from the base to the apex.
  • It’s essential to note that while pyramids of energy are typically upright, pyramids of biomass can sometimes be inverted, especially in aquatic ecosystems. Additionally, other pyramids can adopt diverse shapes, such as spindle-shaped pyramids, depending on the ecosystem’s characteristics.
  • The ecological pyramid serves as a tool to understand the intricate relationships between organisms in an ecosystem. It elucidates the flow of energy, the distribution of biomass, and the number of organisms across various trophic levels. Furthermore, it offers insights into the balance and health of an ecosystem, emphasizing the importance of each trophic level in maintaining ecological stability.
  • In conclusion, ecological pyramids provide a comprehensive and structured view of the interactions and dependencies between organisms in an ecosystem. They underscore the significance of energy flow, biomass distribution, and population dynamics across trophic levels, offering a scientific and objective perspective on the intricate web of life.

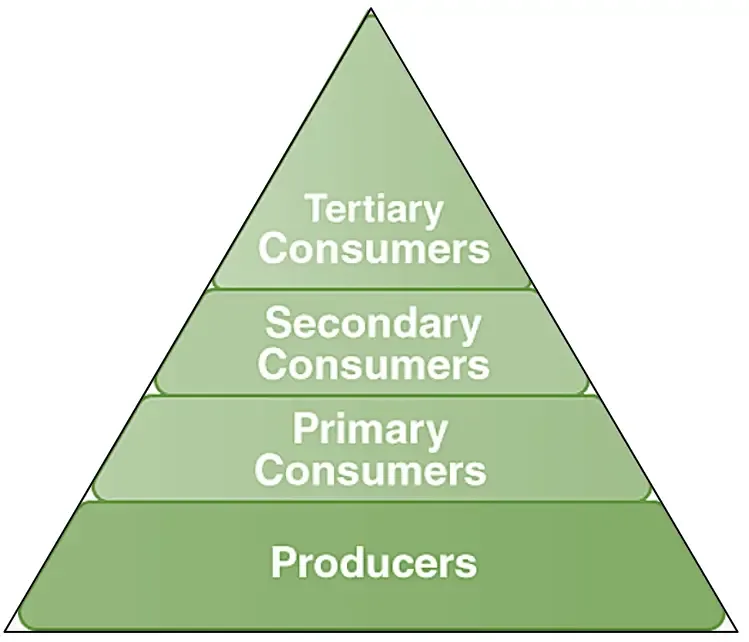

Ecological pyramid
Ecological pyramid

Definition of Ecological Pyramids

Ecological pyramids are graphical representations that depict the distribution of energy, biomass, or numbers of organisms across different trophic levels in an ecosystem.

Features of the Ecological Pyramid

The Ecological Pyramid is a fundamental concept in ecology, offering a structured visual representation of the distribution and flow of energy, biomass, or numbers of organisms across different trophic levels in an ecosystem. Here are the salient features of the Ecological Pyramid:

  1. Layered Structure: The ecological pyramid is composed of multiple layers, typically ranging from two to four. Each layer represents a distinct trophic level, indicating the position of organisms based on their feeding habits and energy source.
  2. Trophic Level Grouping: Organisms that rely on similar food sources are grouped together, occupying the same trophic level. This categorization ensures that organisms with analogous ecological roles are represented collectively.
  3. Base Occupied by Producers: The foundational layer of the ecological pyramid is dominated by producers. These are organisms, such as plants and algae, that synthesize their own food through photosynthesis. Due to their autotrophic nature, they have a substantial population and serve as the primary energy source for higher trophic levels.
  4. Apex Represents Predators: The pinnacle of the ecological pyramid is reserved for apex predators. These organisms are at the highest trophic level and have no natural predators within the ecosystem. Consequently, their population is relatively smaller compared to lower trophic levels.
  5. Diminishing Resources: As one ascends the ecological pyramid, there is a noticeable reduction in available energy or biomass. This tapering shape signifies the inherent energy loss that occurs as energy is transferred from one trophic level to the next, primarily due to metabolic processes.
  6. Pyramid of Numbers Dynamics: In the context of the pyramid of numbers, the uppermost layers might contain fewer individuals, but these organisms tend to have a larger body size and volume. This phenomenon is especially evident in ecosystems where larger predators feed on smaller prey.

Types of Ecological pyramid

Ecological pyramids serve as visual tools that represent the distribution and relationships of organisms across different trophic levels in an ecosystem. There are three primary types of ecological pyramids, each providing unique insights into the structure and function of ecological communities:

Pyramid of Numbers
Pyramid of Numbers
  1. Pyramid of Numbers:
    • Definition: This pyramid represents the quantity of individual organisms present at each trophic level.
    • Characteristics:
      • The pyramid is typically upright, indicating a larger number of organisms at the base (producers) and a decreasing number as one ascends to higher trophic levels.
      • However, in specific ecosystems, such as the detritus food chain, the pyramid may not always be upright. This is because numerous organisms might feed on a single dead entity, inverting the typical structure.
      • The base is dominated by producers due to their vast numbers, while the apex has fewer apex predators.
  2. Pyramid of Biomass:
    • Definition: This pyramid showcases the total biomass (organic matter) present at each trophic level.
    • Characteristics:
      • Generally, the pyramid of biomass is upright, signifying that producers possess the most biomass, followed by a decreasing amount in higher trophic levels.
      • An exception is observed in marine ecosystems, where the biomass of zooplankton (primary consumers) may exceed that of phytoplankton (producers), leading to an inverted structure.
      • The decrease in biomass at higher trophic levels is due to energy losses in metabolic processes and the inefficiency of energy transfer between levels.
  3. Pyramid of Energy:
    • Definition: This pyramid illustrates the distribution and flow of energy from one trophic level to the next.
    • Characteristics:
      • The energy pyramid is invariably upright. This is attributed to the unidirectional flow of energy in ecosystems, where energy is transferred from producers to consumers.
      • As energy progresses through trophic levels, a significant portion is lost to the environment, primarily as heat. This results in a consistent reduction in available energy at higher trophic levels.
      • The base, occupied by producers, contains the maximum energy, which diminishes as one moves towards the apex.

In summary, these ecological pyramids provide a structured and scientific perspective on the distribution of numbers, biomass, and energy across trophic levels. They offer invaluable insights into the dynamics, energy flow, and structural organization of ecosystems, emphasizing the interconnectedness of life forms within ecological communities.

1. Pyramid of Number

Pyramid of Numbers
Pyramid of Numbers | Source: Swiggity.Swag.YOLO.Bro, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons

The Pyramid of Numbers is a graphical representation that depicts the count of individual organisms present at each trophic level in an ecological system. This pyramid serves as a tool to visualize the distribution and abundance of organisms across different feeding levels, from producers to apex predators.

Key Features of the Pyramid of Numbers:

  1. Structure: The pyramid is typically structured with producers forming the base, representing the highest number of individuals. As one progresses upwards through the trophic levels, the number of organisms tends to decrease, culminating in the apex predators at the topmost tier.
  2. Variability in Shape: While the pyramid is generally upright, indicating a decline in the number of organisms with ascending trophic levels, there are exceptions. For instance, in the detritus food chain, where multiple organisms might feed on a single deceased entity, the pyramid can exhibit an inverted shape.
  3. Counting Efficiency: The pyramid of numbers offers a straightforward method for quantifying organisms, making it a valuable tool for tracking changes in an ecosystem over time. However, certain challenges arise, especially when attempting to count juvenile forms or organisms that are elusive or difficult to detect.
  4. Limitations: While the pyramid provides a count of organisms, it does not account for variations in their biomass or energy content. Thus, two organisms might be equivalent in number but vastly different in terms of their ecological impact or energy contribution.
  5. Applications: The pyramid of numbers has been instrumental in ecological studies, offering insights into population dynamics, species interactions, and the overall health of an ecosystem. It aids in understanding the balance of organisms and can highlight potential disruptions or imbalances in the ecosystem.
  6. Historical Context: The term “pyramid of numbers” gained prominence in ecological literature, with notable contributions from researchers like Elton John in the early 1970s.
  7. Ecological Implications: The shape and structure of the pyramid can provide valuable insights into the functioning of an ecosystem. An upright pyramid might indicate a balanced ecosystem, while an inverted shape could suggest a dominance of certain species or trophic interactions that are skewed.

In essence, the Pyramid of Numbers serves as a foundational concept in ecology, offering a snapshot of the distribution and abundance of organisms across trophic levels. While it provides a quantitative measure, it is essential to interpret its data in conjunction with other ecological parameters for a comprehensive understanding of ecosystem dynamics.

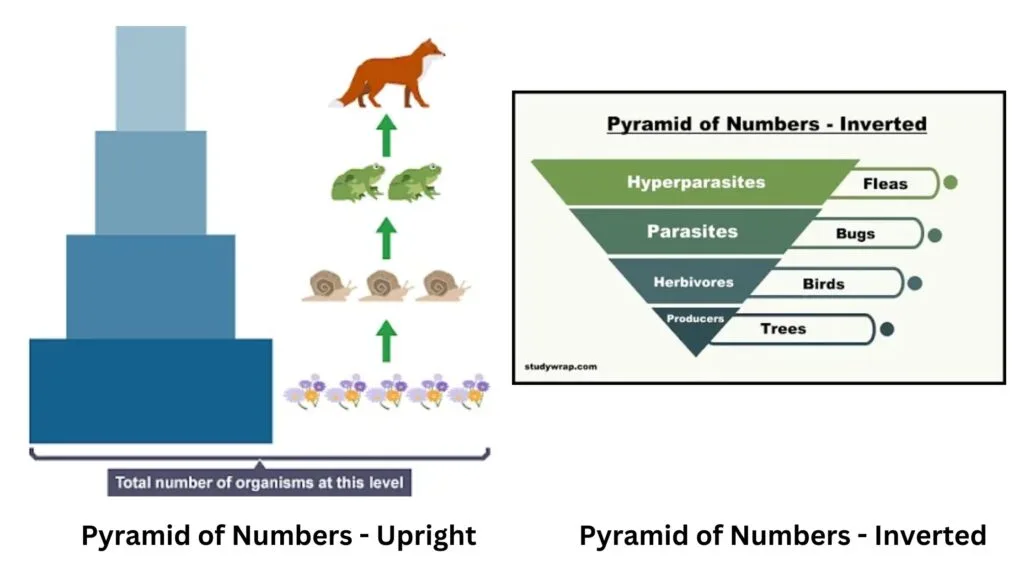

Types of Pyramid of Numbers

Types of Pyramid of Numbers
Types of Pyramid of Numbers

The Pyramid of Numbers is an ecological tool that graphically represents the number of individual organisms present at each trophic level in an ecosystem. Based on the distribution and abundance of organisms across these levels, the Pyramid of Numbers can take on different shapes. Here are the primary types:

  1. Upright Pyramid of Numbers:
    • Description: In this configuration, the number of individuals decreases progressively from the base (producers) to the apex (top predators).
    • Characteristics:
      • Grasslands and pond ecosystems typically exhibit this type of pyramid.
      • Grasses, being abundant, form the base as primary producers.
      • Primary consumers like grasshoppers are fewer in number compared to grasses.
      • Simple carnivores, such as rats, which consume grasshoppers, represent a still smaller number.
      • Secondary carnivores, like snakes, are fewer as they feed on rats.
      • The apex is occupied by top predators, such as hawks, which are the least in number.
  2. Inverted Pyramid of Numbers:
    • Description: Contrary to the upright pyramid, the inverted pyramid sees a rise in the number of individuals as one moves up the trophic levels.
    • Characteristics:
      • This type is evident in ecosystems like forests where trees are the primary producers and insects are the primary consumers.
      • The reduction in the population of higher trophic species can be attributed to factors like food wastage during consumption, digestion inefficiencies, and energy expended in respiration and physical activities.
  3. Spindle-shaped Pyramid of Numbers:
    • Description: This pyramid neither shows a consistent increase nor decrease in the number of individuals across trophic levels, leading to a spindle shape.
    • Characteristics:
      • Found in forest ecosystems devoid of parasites.
      • The population of higher trophic species diminishes due to factors like food wastage during consumption, digestion inefficiencies, and energy use in respiration and activities.

Limitations of the Pyramid of Numbers

The Pyramid of Numbers serves as a graphical representation of the number of organisms present at each trophic level in an ecosystem. While it offers valuable insights into population dynamics and trophic interactions, it is not without its limitations. A deeper understanding of these constraints is crucial for a comprehensive interpretation of ecological data.

  1. Absence of Biomass Consideration:
    • The Pyramid of Numbers solely focuses on the count of organisms, neglecting the actual biomass they represent. This omission can lead to an inaccurate portrayal of energy flow and trophic interactions, as a few large organisms might have a more significant impact on energy dynamics than numerous smaller ones.
  2. Potential Misrepresentation:
    • The pyramid can sometimes present a skewed image of the food chain. For instance, in ecosystems where a single tree supports numerous herbivores, the pyramid might appear inverted, even if the biomass and energy flow suggest otherwise.
  3. Lack of Size Differentiation:
    • The pyramid does not differentiate between the sizes or biomasses of individual organisms within a trophic level. As a result, it may not accurately depict the trophic structure, especially in ecosystems with significant size variations within a single trophic level.
  4. Incomplete Ecosystem Picture:
    • Relying solely on the Pyramid of Numbers can lead to an incomplete or even misleading understanding of an ecosystem’s dynamics. The pyramid’s emphasis on quantity over quality (biomass or energy content) might overlook critical aspects of trophic interactions.
  5. Overemphasis on Quantity:
    • The pyramid’s primary focus on the sheer number of organisms can overshadow other vital ecological parameters, such as biomass, energy flow, or functional roles of species within an ecosystem.

In conclusion, while the Pyramid of Numbers remains an essential tool in ecological research, it is imperative to approach its data with caution. For a more holistic and accurate understanding of ecosystems, it is advisable to complement the Pyramid of Numbers with other ecological metrics, such as the Pyramid of Biomass or the Pyramid of Energy.

2. Pyramid of Energy

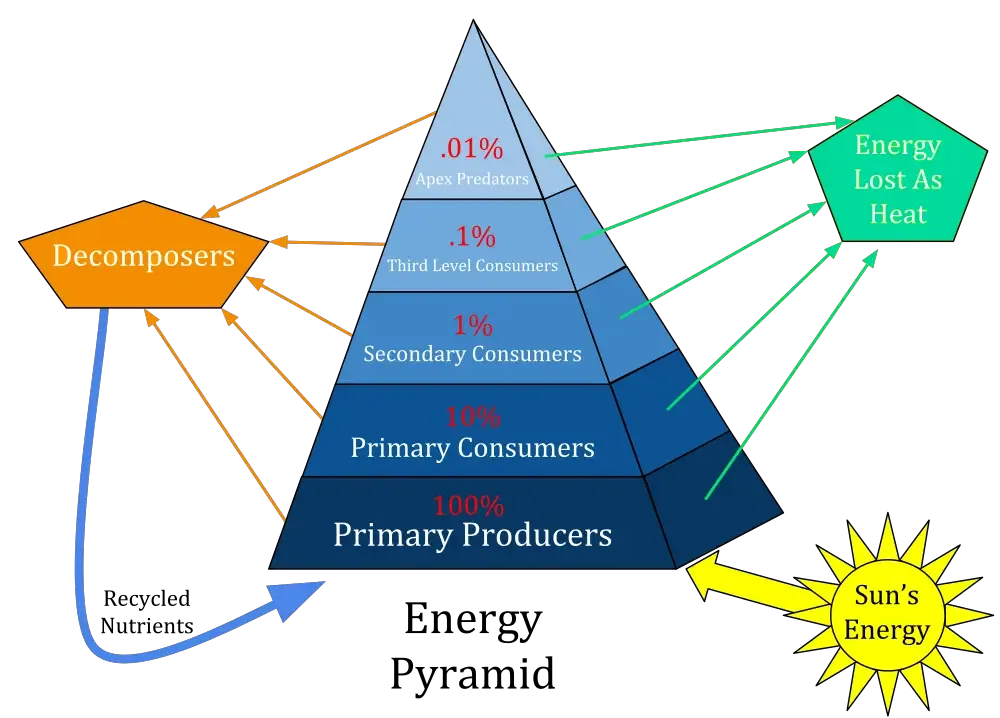

Pyramid of Energy
Pyramid of Energy | Image Credit: Swiggity.Swag.YOLO.Bro, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons

The Pyramid of Energy is a fundamental ecological concept that illustrates the flow and distribution of energy within an ecosystem. Unlike other ecological pyramids, the Pyramid of Energy is invariably upright, reflecting the unidirectional flow of energy from one trophic level to the next.

  1. Fundamental Principles:
    • Unidirectional Flow: Energy within an ecosystem flows in one direction, from producers to various consumer levels. This unidirectional nature ensures that the Pyramid of Energy remains upright.
    • Energy Loss: As energy progresses through trophic levels, a significant portion is lost, primarily due to metabolic processes such as respiration, growth, and reproduction. Typically, only about 10% of the energy from one level is transferred to the next, a phenomenon encapsulated by the 10% law of energy transfer.
  2. Structure and Characteristics:
    • Base – Producers: The foundation of the pyramid consists of primary producers that harness solar energy through photosynthesis. However, only a small fraction (1-2%) of the sun’s energy is converted into biomass.
    • Successive Trophic Levels: As one ascends the pyramid, the energy content diminishes. Primary consumers, secondary consumers, and apex predators occupy subsequent levels, with each level containing only about 10% of the energy of the preceding one.
    • Energy Conservation: The law of thermodynamics dictates that energy cannot be created or destroyed. In the context of the pyramid, while energy is not lost, its form changes, with a significant portion being converted to heat, especially during metabolic activities.
  3. Implications and Insights:
    • Ecosystem Health: A standard ecological pyramid shape, with a broad base and tapering apex, indicates a balanced and healthy ecosystem. Disruptions in this structure can signal ecological imbalances.
    • External Resource Inputs: Some ecosystems, like forested streams, might have an atypical pyramid structure due to external resource inputs.
    • Efficiency of Energy Transfer: The pyramid underscores the inefficiencies in energy transfer across trophic levels. A vast majority of energy is expended in physiological processes, with only a fraction being available for the next level.
  4. Limitations and Challenges:
    • Energy Conversion: Not all solar radiation is usable for photosynthesis, leading to energy reflection or absorption, further reducing the energy available for primary producers.
    • Energy Distribution: The pyramid does not account for specific energy distribution nuances within each trophic level, such as variations in energy content among organisms of the same level.

In conclusion, the Pyramid of Energy offers a comprehensive view of energy dynamics within an ecosystem. By understanding the distribution and flow of energy, ecologists can gain insights into the health, stability, and intricacies of various ecosystems, ensuring informed conservation and management decisions.

Characteristics of Pyramid of Energy

The Pyramid of Energy is a graphical representation that showcases the distribution of energy across different trophic levels in an ecosystem. This pyramid provides a clear picture of how energy flows and is utilized within ecological systems. Here are the primary characteristics of the Pyramid of Energy:

  1. Directional Flow of Energy:
    • The Pyramid of Energy illustrates the unidirectional flow of energy through the food chain. Energy moves from one trophic level to the next, with each level assimilating and then transmitting energy to the subsequent level.
  2. Discrepancy in Mass and Energy:
    • While certain species might have a lower biomass, their contribution in terms of energy transfer can be significantly higher. This means that a species with less mass can have a more profound impact on energy dynamics than a species with greater mass.
  3. Declining Energy at Successive Levels:
    • As one ascends the Pyramid of Energy, there is a noticeable decrease in the amount of energy available. Each trophic level typically retains and transmits less energy than it receives, leading to a tapering structure of the pyramid.
  4. Inefficiency in Energy Transfer:
    • Not all energy assimilated by a trophic level is passed on to the next. A substantial portion of the energy is expended in metabolic processes, with only a fraction being available for the subsequent trophic level. This characteristic explains the tilted appearance of most energy pyramids.
  5. Anomaly in Biomass and Energy Distribution:
    • In certain ecosystems, particularly those with open water, primary producers (like phytoplankton) might have a lower biomass compared to primary consumers (like zooplankton). However, the energy stored and transferred by the producers is considerably higher, underscoring the distinction between biomass and energy dynamics.
  6. Conservation Principle:
    • Despite the losses at each trophic level, the energy transmitted to the next level should ideally be conserved or even slightly increased from the energy retained at the previous level.

In essence, the Pyramid of Energy offers a comprehensive view of energy dynamics within an ecosystem, emphasizing the importance of energy conservation and the inefficiencies inherent in natural energy transfer processes.

Levels of Pyramid of Energy

The Pyramid of Energy represents the distribution and flow of energy within an ecosystem, from the primary producers to the apex predators. Each level of this pyramid signifies a distinct trophic level, with its own set of organisms and energy dynamics. Here’s a detailed breakdown of the levels of the Pyramid of Energy:

  1. Producers:
    • Situated at the base of the pyramid, producers are the primary source of energy for all other trophic levels.
    • Predominantly autotrophs, these organisms synthesize their own food. The majority, such as plants, harness energy directly from the sun through photosynthesis.
    • However, not all autotrophs rely on sunlight. Some, like certain fungi and earthworms, derive energy from the soil and other non-living sources.
    • Contrary to plants, these soil-dependent autotrophs generally have a lower energy yield.
    • Heterotrophs, which derive energy from organic carbon sources, are also present at this foundational level.
  2. Primary Consumers:
    • Occupying the second tier of the pyramid, primary consumers are primarily herbivores.
    • These organisms feed directly on producers, channeling the energy stored in plants to the next trophic level.
    • The sustenance and survival of primary consumers are intrinsically linked to the energy provided by plants.
    • Their pivotal role ensures the smooth functioning of the ecosystem, facilitating energy transfer across levels.
  3. Secondary Consumers:
    • Residing at the third echelon of the pyramid, secondary consumers are typically carnivorous in nature.
    • These organisms feed on primary consumers, acting as a bridge for energy transfer from the herbivores to higher trophic levels.
    • The existence of secondary consumers is contingent upon the presence and vitality of primary consumers.
  4. Tertiary Consumers:
    • Positioned at the apex of the pyramid, tertiary consumers are the top predators in the ecosystem.
    • These organisms feed on both primary and secondary consumers, ensuring the culmination of the energy flow within the ecosystem.
    • As the terminal recipients of the energy flow, any residual energy not utilized by these consumers is eventually returned to the environment, encompassing the soil, water, and atmosphere. Over time, a portion of this energy dissipates into space.

In conclusion, the Pyramid of Energy delineates the intricate web of energy transfer within an ecosystem. Each level plays a crucial role in maintaining ecological balance, ensuring the sustainability and vitality of the environment.

Advantages of the pyramid of energy

The Pyramid of Energy is a pivotal tool in ecological studies, offering a comprehensive representation of energy flow within an ecosystem. This model provides several advantages that enhance our understanding of ecological dynamics:

  1. Temporal Productivity Measurement:
    • The Pyramid of Energy considers the rate of energy output over a specified duration. This temporal aspect allows for a more dynamic understanding of energy distribution and consumption within ecosystems.
  2. Accurate Productivity Comparison:
    • Organisms with similar biomass might have significantly different lifespans. A direct comparison of their biomass can lead to misconceptions. However, by focusing on productivity, the Pyramid of Energy offers a more precise comparison, taking into account the energy each organism contributes over its lifetime.
  3. Relative Energy Chain Analysis:
    • The model facilitates a comparative analysis of the energy chains within a specific ecosystem. Moreover, it provides a framework to juxtapose the energy dynamics of different ecosystems, fostering a broader ecological understanding.
  4. Absence of Inverted Structures:
    • One of the inherent strengths of the Pyramid of Energy is its consistent upright structure. Unlike other ecological pyramids, such as the pyramid of numbers or biomass, there are no instances of inverted pyramids in the energy model. This ensures a clear and consistent representation of energy flow.
  5. Incorporation of Solar Energy:
    • The Pyramid of Energy allows for the integration of solar energy into the model. This is crucial, as solar energy is the primary energy source for most ecosystems, driving photosynthesis and setting the foundation for energy flow.

In essence, the Pyramid of Energy offers a robust and comprehensive framework to study and understand the intricacies of energy dynamics within ecosystems. Its advantages underscore its significance in the realm of ecological research and analysis.

Disadvantages of the pyramid of energy

The Pyramid of Energy is an instrumental tool in ecological studies, providing a visual representation of energy flow within ecosystems. However, like all models, it has its limitations. Here are some of the disadvantages associated with the Pyramid of Energy:

  1. Requirement of Biomass Production Rate:
    • To construct an accurate Pyramid of Energy, one needs to determine the rate of biomass production of each organism. This necessitates meticulous measurements of an organism’s growth and reproductive rates over time. Such measurements can be intricate and time-consuming, making the process challenging.
  2. Trophic Level Assignment Challenges:
    • Assigning organisms to specific trophic levels within the pyramid can be problematic. While primary producers or primary consumers might be relatively straightforward to categorize, the classification becomes complex for organisms that have varied diets or occupy multiple trophic levels.
  3. Decomposers and Detritivores Classification:
    • Decomposers and detritivores play a crucial role in ecosystems by breaking down organic matter and recycling nutrients. However, their unique position in the food web poses a challenge when trying to assign them to a specific trophic level in the Pyramid of Energy. Their role spans multiple levels, making their placement ambiguous.
  4. Overemphasis on Energy Quantification:
    • While the Pyramid of Energy focuses on quantifying energy flow, it might overlook other vital interactions and relationships within the ecosystem. This could lead to an incomplete understanding of the ecosystem’s dynamics.

In conclusion, while the Pyramid of Energy offers valuable insights into the energy dynamics of ecosystems, it is essential to approach it with an understanding of its limitations. Scientists and ecologists must use it in conjunction with other tools and models to gain a holistic understanding of ecological systems.

Examples of Pyramid of Energy

The Pyramid of Energy is a graphical representation that illustrates the flow of energy through different trophic levels of an ecosystem. The energy decreases as one moves up the pyramid, reflecting the energy losses that occur at each trophic level. Here’s an example to elucidate this concept:

  1. Primary Producers – The Base of the Pyramid:
    • Consider a plant that captures 100 calories of energy from the sun through the process of photosynthesis. This plant, being a primary producer, forms the base of the energy pyramid.
  2. Primary Consumers – The Herbivores:
    • A deer, an herbivore, consumes this plant to gain energy. However, not all the energy from the plant is efficiently transferred to the deer. A significant portion of the energy is expended by the plant for its metabolic activities. Thus, out of the 100 calories the plant captured, only about 10 calories are stored in the deer’s body as usable energy.
  3. Secondary Consumers – The Carnivores:
    • Now, consider a lion, a carnivore, that preys on the deer. When the lion consumes the deer, it doesn’t receive the full 10 calories stored in the deer. This is because the deer, during its lifetime, used a portion of its energy for its own metabolic processes, such as movement, digestion, and reproduction. As a result, the lion might only obtain a fraction of the energy, further reducing the energy available at this trophic level.
  4. Energy Dissipation:
    • As energy flows from one trophic level to the next, there are significant losses primarily due to metabolic processes and the second law of thermodynamics. This results in a diminishing amount of usable energy as one ascends the pyramid.

In essence, the Pyramid of Energy exemplifies the principle that energy transfer in ecosystems is not 100% efficient. With each transfer, a substantial portion of energy is lost, primarily as heat, ensuring that the pyramid remains upright in structure. This phenomenon underscores the intricate balance and interdependence of organisms within an ecosystem.

3. Pyramid of Biomass

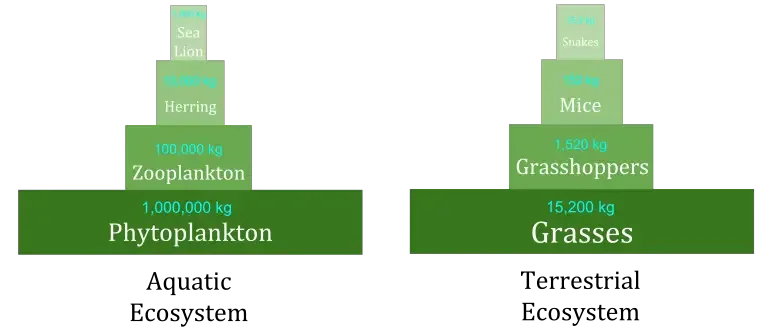

Pyramid of Biomass
Pyramid of Biomass | Image Credit: Swiggity.Swag.YOLO.Bro, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons

The Pyramid of Biomass is an ecological representation that depicts the total biomass present at each trophic level of an ecosystem. Biomass, in this context, refers to the total weight or mass of living organisms in a given area. This pyramid provides insights into the distribution of biomass across different trophic levels, from producers to apex predators. Here’s a detailed exploration of the concept:

  1. Definition and Structure:
    • The Pyramid of Biomass quantifies the biomass present in each trophic level of an ecological community at a specific moment in time. It offers a graphical representation of biomass (the cumulative amount of living or organic matter) in different trophic levels, typically measured in units like grams per square meter or calories per square meter.

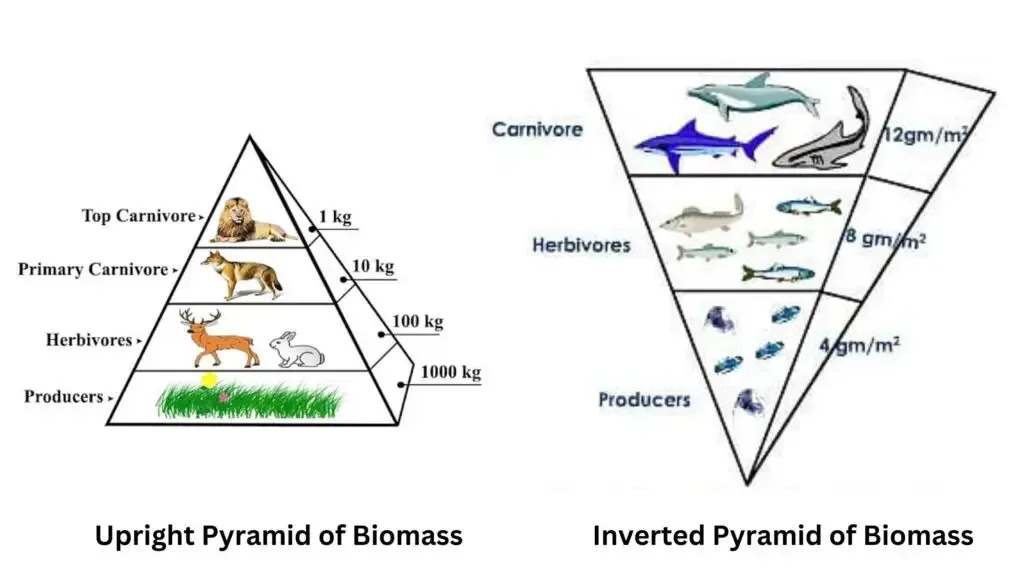

  2. Upright vs. Inverted Pyramids:
    • Generally, the Pyramid of Biomass is upright, meaning that the base (comprising producers) has the highest biomass, decreasing as one moves up the trophic levels. Terrestrial ecosystems, such as forests and grasslands, exemplify this pattern.
    • However, exceptions exist. In oceanic ecosystems, the pyramid can be inverted. Here, a vast number of zooplankton depend on a relatively smaller biomass of phytoplankton. This inversion is attributed to the rapid reproduction rate of phytoplankton, despite their short individual lifespans.
  3. Biomass Distribution:
    • In a typical upright biomass pyramid, producers like plants possess the maximum biomass. Primary consumers, which feed on these producers, have a reduced biomass in comparison. This trend continues up the pyramid, with each successive trophic level having lesser biomass than the previous one.
    • Only about 15 to 20% of the biomass from one trophic level is transferred to the next. This limited transfer is due to energy losses at each level, primarily through metabolic processes.
  4. Significance in Ecosystem Dynamics:
    • The Pyramid of Biomass is pivotal in understanding the energy and matter flow in ecosystems. It highlights the efficiency of energy transfer between trophic levels and underscores the importance of producers in supporting higher trophic levels.
    • Anomalies, like the inverted pyramid in oceanic ecosystems, emphasize the dynamic nature of ecosystems and the adaptability of organisms to their environments.

What is Biomass?

Biomass, within the realm of ecology, denotes the cumulative mass of all living or organic entities present within a specific ecosystem at a given point in time. This concept is pivotal in understanding the distribution of energy and matter within ecological systems.

  1. Classification of Biomass:
    • Species Biomass: This pertains to the total biomass of all individual species within an ecosystem. Whether it’s a towering tree or a minuscule microbe, each contributes to the species biomass.
    • Community Biomass: This is a broader classification that encompasses the combined mass of all species that identify a particular community as their habitat. It provides a holistic view of the organic mass within a defined ecological community.
  2. Measurement and Significance:
    • Biomass measurement is not restricted to large, visible organisms. It spans across various scales, from microscopic entities like bacteria to larger organisms such as humans and trees.
    • Quantifying biomass is essential for various scientific endeavors, including understanding energy flow, nutrient cycling, and the overall health of an ecosystem.
  3. Role in Ecosystem Dynamics:
    • Biomass serves as a tangible metric to gauge the productivity and vitality of an ecosystem. It reflects the balance between energy production (through processes like photosynthesis) and energy consumption (through respiration and decomposition).
    • Variations in biomass can indicate shifts in ecosystem dynamics, potentially signaling ecological disturbances or changes in habitat quality.

Features of Pyramid of Biomass

The Pyramid of Biomass is a fundamental tool in ecological studies, offering a comprehensive perspective on the distribution of organic matter across different trophic levels within an ecosystem. Here are its salient features:

  1. Weight-Based Representation: Unlike the Pyramid of Numbers, which is based on counting individual organisms, the Pyramid of Biomass emphasizes the weight of organisms. This approach provides a more accurate representation of the energy content at each trophic level.
  2. Total Dry Weight Measurement: The pyramid showcases the cumulative dry weight of all organisms present at each trophic level at a specific moment. This method excludes the water content in organisms, ensuring a consistent measure of organic material.
  3. Routine Collection and Measurement: To construct a Pyramid of Biomass, systematic collection and measurement of the dry weight of all species within each trophic level are essential. This rigorous approach ensures the accuracy and reliability of the data represented.
  4. Resolution of Size Disparity: One of the significant advantages of the Pyramid of Biomass is its ability to address the size disparity issue. Since it considers weight rather than the number of organisms, it provides a more balanced view, especially in ecosystems where organisms vary significantly in size.
  5. Standard Unit of Measurement: Biomass is typically measured in grams per square meter (g/m^2). This standardized unit allows for consistent comparisons across different ecosystems and facilitates a clearer understanding of energy distribution.
  6. Holistic View of Ecosystem: The Pyramid of Biomass offers a comprehensive snapshot of the ecosystem’s energy content, providing insights into the flow of energy from producers to higher trophic levels.

Types of Biomass Pyramid

Types of Biomass Pyramid
Types of Biomass Pyramid

Biomass pyramids provide a visual representation of the distribution of organic matter across various trophic levels within an ecosystem. Based on the distribution of biomass, these pyramids can be categorized into two primary types:

  1. Upward Pyramid (Upright Pyramid):
    • Structure: This pyramid has a broad base representing a high biomass of primary producers, tapering off to a smaller apex representing the highest trophic level.
    • Distribution:
      • The base consists of autotrophic producers, which have the highest biomass in the ecosystem.
      • The subsequent level, the primary consumers, possesses a biomass that is lesser than that of the producers.
      • The secondary consumers, which form the next trophic level, have even lesser biomass than the primary consumers.
      • The apex of the pyramid, representing the highest trophic level, contains the least biomass.
    • Occurrence: Upward pyramids are commonly observed in terrestrial ecosystems, where the biomass of producers is significantly higher than that of consumers.
  2. Inverted Pyramid:
    • Structure: Contrary to the upward pyramid, the inverted pyramid has a narrow base and a broader apex. This structure indicates a smaller biomass of producers compared to the biomass of consumers at higher trophic levels.
    • Characteristics:
      • The base, representing the producer level, has a relatively low biomass.
      • As one moves up the pyramid, the biomass increases, with herbivores and carnivores having a higher biomass than the producers.
    • Nomenclature: Due to its unique structure, with a smaller base and a wider apex, this pyramid is aptly termed as the “Inverted Pyramid.”
    • Occurrence: Inverted biomass pyramids are predominantly found in aquatic ecosystems. In such systems, the biomass of consumers, especially zooplankton, at any given time is greater than the biomass of the primary producers, such as phytoplankton.

Biomass Pyramid of a Marine Ecosystem

In marine ecosystems, the distribution of biomass across various trophic levels presents a unique pattern, often resulting in an inverted biomass pyramid. Here’s an in-depth exploration of this phenomenon:

  • Inverted Structure: Unlike terrestrial ecosystems where the pyramid of biomass is typically upright, marine ecosystems often exhibit an inverted structure. This means that the base of the pyramid, representing primary producers like phytoplankton, has a lower biomass compared to the higher trophic levels.
  • Dominance of Zooplankton: Above the primary producers, zooplankton form a trophic level with a biomass greater than that of the phytoplankton. This is followed by small fish and subsequently larger fish, with the latter having the highest biomass in the marine ecosystem.
  • Rapid Turnover of Phytoplankton: One might wonder how a system with such a limited base can support the vast biomass of higher trophic levels. The answer lies in the rapid reproductive rate and short lifespan of phytoplankton. Even though their biomass is comparatively low at any specific moment, phytoplankton reproduce swiftly, ensuring a continuous supply of food for the consumers above them.
  • Sustenance of the Ecosystem: The marine ecosystem’s balance is maintained by the rapid turnover of phytoplankton. Their frequent replenishment ensures that zooplankton and larger fish have a consistent food source. This dynamic equilibrium allows the marine ecosystem to thrive even with an inverted biomass pyramid.
  • Efficiency in Energy Transfer: The marine ecosystem’s resilience is further enhanced by the efficiency with which energy is transferred between trophic levels. Even with fewer phytoplankton, the rapid rate of their production ensures that the energy flow to higher trophic levels remains consistent and sufficient.

Limitations of Pyramid of Biomass

The pyramid of biomass is a valuable tool in ecological studies, providing insights into the distribution of biomass across different trophic levels in an ecosystem. However, like all models, it has its limitations. Here are some of the inherent constraints associated with the pyramid of biomass:

  1. Overestimation of Energy: One of the primary drawbacks of the biomass pyramid is its potential to overestimate the energy content at each trophic level. The pyramid might give the impression that each level contains more energy than is actually available for the next trophic level.
  2. Inclusion of Non-transferable Mass: The biomass pyramid takes into account the total mass of organisms at each trophic level, including components that are not consumed or transferred to the next level. For instance, when considering animals, the pyramid includes the weight of bones, which are not typically consumed by predators. This can lead to a misrepresentation of the actual usable biomass.
  3. Static Representation: The pyramid of biomass provides a snapshot of the ecosystem at a particular point in time. It does not account for seasonal variations or dynamic changes in biomass, which can vary significantly in some ecosystems.
  4. Does Not Differentiate Quality of Biomass: All biomass is not equal in terms of nutritional value. For example, fibrous plant material might have a high biomass but low nutritional content. The pyramid does not differentiate between such qualitative differences.
  5. Potential for Misinterpretation: While the pyramid of biomass can indicate if an ecosystem is imbalanced, it does not provide specific reasons for the imbalance. Misinterpretations can arise if the pyramid is used in isolation without considering other ecological factors.

Example of Biomass Pyramid

In the intricate web of nature, various organisms interact and depend on each other for sustenance. One such example can be observed in a terrestrial ecosystem involving grass, mice, and owls.

  1. Base of the Pyramid – Producers: At the foundational level of the biomass pyramid lies the grass, which serves as the primary producer. Grass, being autotrophic, synthesizes its own food through photosynthesis and accumulates a significant amount of biomass. This makes it the most substantial layer in the pyramid, representing the vast quantity of organic matter it contributes to the ecosystem.
  2. Middle of the Pyramid – Primary Consumers: Ascending the pyramid, we find the mice, which are herbivores that feed on grass seeds. While they derive their energy and nutrients from the grass, their overall biomass is less than that of the grass. This reduction in biomass is due to energy losses in the form of heat during metabolic processes and the fact that not all parts of the grass are consumed or assimilated by the mice.
  3. Apex of the Pyramid – Secondary Consumers: At the pinnacle of the biomass pyramid resides the owl. Owls, being carnivorous birds, prey on mice for sustenance. However, the biomass of the owls is even less than that of the mice. This is because only a fraction of the energy obtained from the grass by the mice is transferred to the owls when they consume the mice.

In contrast to this typical upright pyramid, certain ecosystems, like the pond ecosystem, exhibit an inverted biomass pyramid. In such systems, the primary producers, such as phytoplankton, have a biomass that is lesser than the primary consumers like zooplankton. This anomaly is due to the rapid reproduction rate of phytoplankton, ensuring a continuous supply of food for the consumers, even though their standing biomass at any given moment might be less.

In summary, the biomass pyramid effectively illustrates the distribution of biomass across different trophic levels, highlighting the flow of energy and matter in an ecosystem.

Energy Flow in an Ecological Pyramid

In the intricate dynamics of ecosystems, energy plays a pivotal role in sustaining life and ensuring the continuity of various biological processes. The flow of this energy through different levels of the ecosystem is best illustrated by the ecological pyramid.

  1. Transfer of Energy: The foundation of energy flow in an ecosystem begins when one organism consumes another, assimilating energy-rich molecules from its prey. This energy is then utilized for various metabolic activities, growth, and reproduction.
  2. Inefficiency of Energy Transfers: Notably, the transfer of energy between trophic levels is not entirely efficient. A significant portion of the energy is lost during metabolic processes, primarily as heat. This inherent inefficiency restricts the length of food chains within an ecosystem.
  3. Biomass as a Storage Medium: The energy that is successfully assimilated and not expended in metabolic activities gets stored as biomass within the organisms. Biomass, in this context, refers to the organic material that constitutes the physical structure of organisms. It is this stored energy in the form of biomass that becomes available to the next trophic level when they consume organisms from the preceding level.
  4. The 10% Rule: On average, only about 10% of the energy stored as biomass in one trophic level is transferred and subsequently stored in the next trophic level. This means that with each successive trophic level, there is a substantial reduction in the available energy. This phenomenon is often referred to as the “10% rule” in ecological studies.
  5. Limitation on Food Chain Length: Due to the fractional transfer of energy and the 10% rule, food chains typically have a limited number of trophic levels, usually ranging from three to six. Beyond these levels, the energy available becomes insufficient to sustain a viable population at a higher trophic level.

In conclusion, the ecological pyramid effectively encapsulates the concept of energy flow within ecosystems, highlighting the inherent inefficiencies and the consequential limitations on the length of food chains. This understanding is crucial for comprehending the dynamics of natural systems and the delicate balance that sustains life on Earth.

Importance of Ecological Pyramid

Ecological pyramids serve as graphical representations of the trophic levels within an ecosystem, illustrating the distribution of energy, biomass, or numbers of organisms. The significance of these pyramids in understanding ecological dynamics is multifaceted:

  1. Trophic Interactions: Ecological pyramids effectively depict the feeding relationships among different organisms across various ecosystems. By visualizing these interactions, one can gain insights into the dietary patterns of diverse living entities.
  2. Energy Transfer Efficiency: One of the primary roles of the ecological pyramid is to demonstrate the efficiency of energy transfer across trophic levels. This understanding is crucial for gauging how energy flows within an ecosystem and the inherent losses associated with each transfer.
  3. Monitoring Ecosystem Health: The structure and distribution of organisms within an ecological pyramid can serve as indicators of the overall health and stability of an ecosystem. Any deviations or imbalances can signal potential threats or disturbances, enabling timely interventions to prevent further damage.
  4. Biodiversity Insights: Ecological pyramids provide valuable data regarding the biodiversity of a specific region. A diverse and balanced pyramid often indicates a healthy and resilient ecosystem, while imbalances can suggest threats to biodiversity.
  5. Food-Consumer Relationship: The foundation of ecological pyramids is based on the food-consumer relationship. This relationship is pivotal in understanding the interdependencies of organisms within an ecosystem.
  6. Maintaining Ecological Equilibrium: Ecological pyramids play a vital role in maintaining the balance within ecosystems. They offer a clear picture of energy distribution, ensuring that energy flow is consistent and sustainable across trophic levels.
  7. Indicator of Environmental Harm: A disruption in the food chain can lead to disturbances in the structure of the ecological pyramid. Such disturbances can have cascading effects, potentially causing significant harm to the entire ecosystem.
  8. Comprehensive Overview: Ecological pyramids provide a holistic view of various habitats, illustrating the nutrition and feeding habits of organisms. This comprehensive perspective is essential for ecological studies and conservation efforts.

Limitations of Ecological Pyramid

Ecological pyramids are graphical representations that depict the distribution of organisms across different trophic levels. While they offer valuable insights into the structure and functioning of ecosystems, they come with certain limitations:

  1. Complex Food Webs: Ecological pyramids primarily represent simple food chains. However, in nature, multiple species often occupy various trophic levels, forming intricate food webs. These pyramids do not adequately capture the complexity of such webs.
  2. Exclusion of Saprophytes: Saprophytes, organisms that feed on decaying organic matter, play a crucial role in ecosystems by recycling nutrients. Despite their significance, ecological pyramids often overlook them, treating them as non-living components.
  3. Lack of Seasonal and Climatic Considerations: Ecological pyramids do not account for seasonal and climatic variations, which can significantly influence the distribution and abundance of organisms across trophic levels.
  4. Applicability to Simple Food Chains: The design of ecological pyramids is best suited for simple food chains. However, natural ecosystems rarely operate on simple food chains, making these pyramids less representative of real-world scenarios.
  5. Overlooking Energy Sources: Important energy sources, such as litter and humus, are not represented in ecological pyramids, even though they play a pivotal role in nutrient cycling and energy flow in ecosystems.
  6. Same Species at Different Levels: In some ecosystems, a single species might occupy multiple trophic levels. Ecological pyramids do not account for such scenarios, leading to potential inaccuracies in representation.
  7. No Insight into Energy Transfer Rate: While ecological pyramids depict energy distribution across trophic levels, they do not provide information about the rate or efficiency of energy transfer between levels.

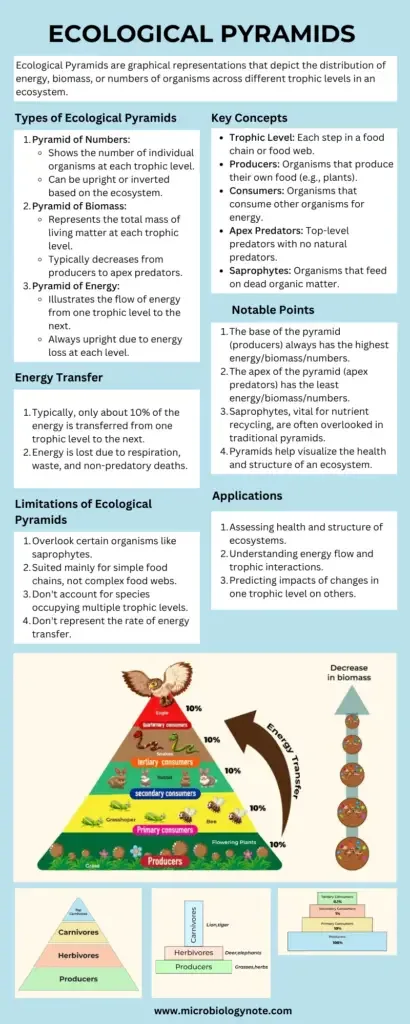

Ecological Pyramids Infograph
Ecological Pyramids Infograph

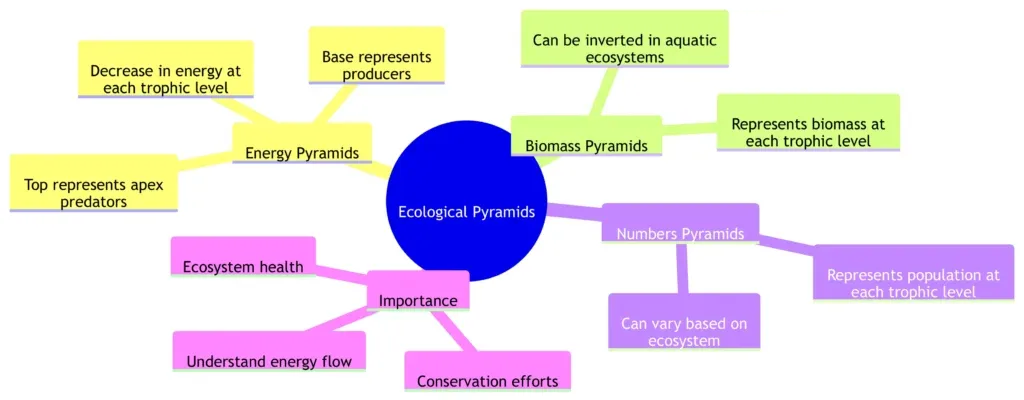

Ecological Pyramids Mindmap
Ecological Pyramids Mindmap

Quiz Exercise

FAQ

What is an Ecological Pyramid?

An Ecological Pyramid is a graphical representation that illustrates the distribution of energy, biomass, or numbers of organisms across different trophic levels in an ecosystem.

How many types of Ecological Pyramids are there?

There are three primary types of Ecological Pyramids: Pyramid of Numbers, Pyramid of Biomass, and Pyramid of Energy.

What does the base of the Ecological Pyramid represent?

The base of the Ecological Pyramid represents the producers, which are typically plants that harness energy from the sun through photosynthesis.

Why is the Pyramid of Energy always upright?

The Pyramid of Energy is always upright because energy decreases as it moves up the trophic levels due to losses from respiration, waste, and non-predatory deaths, ensuring that higher levels always have less energy than the ones below.

Can the Pyramid of Numbers be inverted?

Yes, the Pyramid of Numbers can be inverted in certain ecosystems. For example, in a forest ecosystem, a single tree (producer) might support numerous herbivores, leading to an inverted structure.

What is the significance of saprophytes in Ecological Pyramids?

Saprophytes, like fungi and certain bacteria, play a crucial role in decomposing organic matter and recycling nutrients. However, traditional Ecological Pyramids often overlook them, which is one of the pyramid’s limitations.

How does the Ecological Pyramid relate to the concept of a food chain?

The Ecological Pyramid visually represents the different trophic levels of a food chain, starting from producers at the base and culminating with apex predators at the top.

Why is energy transfer between trophic levels not 100% efficient?

Energy transfer is not 100% efficient due to losses from metabolic processes, respiration, waste, and non-predatory deaths. Typically, only about 10% of the energy is transferred from one trophic level to the next.

How do Ecological Pyramids help in understanding ecosystem health?

Ecological Pyramids provide insights into the distribution of energy, biomass, or numbers across trophic levels. Any imbalances or anomalies in these distributions can indicate disruptions or changes in the ecosystem, helping in assessing its health.

Are there any limitations to using Ecological Pyramids?

Yes, Ecological Pyramids have several limitations. They often overlook certain organisms like saprophytes, are primarily suited for simple food chains, don’t account for species occupying multiple trophic levels, and don’t represent the rate of energy transfer, among other constraints.

References

  1. Wikipedia contributors. (Year of last edit). Ecological pyramid. Wikipedia. https://en.wikipedia.org/wiki/Ecological_pyramid
  2. Author(s) or Editor(s) if available. (Year of publication). Ecological pyramid. GeeksforGeeks. https://www.geeksforgeeks.org/ecological-pyramid/
  3. Author(s) or Editor(s) if available. (Year of publication). Ecological pyramid and its types. Vedantu. https://www.vedantu.com/biology/ecological-pyramid-and-its-types
  4. Author(s) or Editor(s) if available. (Year of publication). Ecological pyramids: Environment notes. Prepp. https://prepp.in/news/e-492-ecological-pyramids-environment-notes
  5. Author(s) or Editor(s) if available. (Year of publication). Different types of ecological pyramid. Aakash. https://www.aakash.ac.in/important-concepts/biology/different-types-of-ecological-pyramid
  6. Author(s) or Editor(s) if available. (Year of publication). Ecological pyramid: Definition, types, examples. Earth Eclipse. https://eartheclipse.com/environment/ecosystem/ecological-pyramid-definition-types-examples.html
  7. Author(s) or Editor(s) if available. (Year of publication). Ecological pyramid. Biology Dictionary. https://biologydictionary.net/ecological-pyramid/
  8. Author(s) or Editor(s) if available. (Year of publication). What are 3 types of ecological pyramids? Biology Exams 4 U. https://www.biologyexams4u.com/2019/02/what-are-3-types-of-ecological-pyramids.html
  9. Author(s) or Editor(s) if available. (Year of publication). Topic title. YaClass. https://www.yaclass.in/p/science-cbse/class-10/our-environment-12312/re-82656333-e3c4-4b96-8b39-0433913b7655
  10. Swain, A. A. (Year of publication). Ecological pyramids PPT. SlideShare. https://www.slideshare.net/AnkitAbhilashSwain/ecological-pyramids-ppt-133092700
  11. Author(s) or Editor(s) if available. (Year of publication). Ecological pyramids. BioNinja. https://ib.bioninja.com.au/options/option-c-ecology-and-conser/c2-communities-and-ecosyste/ecological-pyramids.html

Related Posts

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.

What is Karyotyping? What are the scope of Microbiology? What is DNA Library? What is Simple Staining? What is Negative Staining? What is Western Blot? What are Transgenic Plants? Breakthrough Discovery: Crystal Cells in Fruit Flies Key to Oxygen Transport What is Northern Blotting? What is Southern Blotting?
What is Karyotyping? What are the scope of Microbiology? What is DNA Library? What is Simple Staining? What is Negative Staining? What is Western Blot? What are Transgenic Plants? Breakthrough Discovery: Crystal Cells in Fruit Flies Key to Oxygen Transport What is Northern Blotting? What is Southern Blotting?
Adblocker detected! Please consider reading this notice.

We've detected that you are using AdBlock Plus or some other adblocking software which is preventing the page from fully loading.

We don't have any banner, Flash, animation, obnoxious sound, or popup ad. We do not implement these annoying types of ads!

We need money to operate the site, and almost all of it comes from our online advertising.

Please add biologynotesonline.com to your ad blocking whitelist or disable your adblocking software.

×
