BOD Incubator – Definition, Principle, Components, Procedure, Application

What is BOD Incubator?

  • The Biological Oxygen Demand (BOD) Incubator emerges as a pivotal instrument within microbiological laboratories, offering a specialized environment conducive for various scientific applications, including cell culture, fungal growth, and numerous pharmaceutical tests. This apparatus is not only recognized for its capacity to facilitate the BOD test but also for its versatility in supporting diverse experimental conditions in both microbiology and molecular biology.
  • In essence, the BOD Incubator is often synonymous with a low-temperature or refrigerated incubator, attributed to its capability to generate a temperature range between 5°C to 60°C, thereby encompassing both cooling and heating capacities within a singular unit. It meticulously creates an insular environment, typically maintaining a steadfast temperature of 20 degrees centigrade, which is pivotal for certain biochemical and microbiological processes.
  • The BOD Incubator is instrumental in various industries, where it is utilized to ascertain the optimal BOD level under specific temperatures for their products. Furthermore, it is employed in laboratories for diverse purposes, such as studying germination, insect research, and notably, the culturing of bacteria.
  • The term “Biological Oxygen Demand” or alternatively “Biochemical Oxygen Demand” is derived from the process occurring within the incubator, where oxygen depletion transpires upon the activation of microbes, which subsequently consume oxygen, utilizing it as an electron receptor.
  • The microbes assimilate organic material, furnishing them with the requisite energy for survival and proliferation. Concurrently, an oxidation process unfolds independently of microbial intervention, which is quantified utilizing the Chemical Oxygen Demand (COD) method.
  • The BOD incubator is not merely a popular instrument but is quintessential for various applications, particularly in testing the culturing of bacteria and other microorganisms. It simulates conditions that facilitate the sustenance of microorganisms, maintaining not only temperature and humidity but also ensuring the requisite levels of oxygen and carbon dioxide, which are vital for survival.
  • In the realms of molecular biology and microbiology, this apparatus is of paramount importance, providing a controlled environment that is conducive for the meticulous study and observation of microbial life and biochemical processes.
  • In conclusion, the BOD Incubator stands out as a fundamental tool in scientific research and industrial applications, bridging the gap between experimental needs and controlled environmental conditions. Its multifaceted applications, ranging from the study of microbial life to the testing of biochemical processes, underscore its indispensable role in advancing scientific research and industrial practices, ensuring that experiments and tests are conducted under optimal, controlled conditions.

BOD incubator Definition

The BOD (Biological Oxygen Demand) Incubator is a specialized laboratory instrument designed to provide a controlled temperature environment, typically around 20 degrees centigrade, for microbial and biochemical studies, particularly for assessing the oxygen demand of microorganisms in water samples.

BOD incubator Principle

  • The BOD (Biological Oxygen Demand) Incubator operates on a meticulously designed mechanism that ensures a controlled environment, optimal for microbial and biochemical studies. At the core of its functionality lies the integration of power, temperature regulation, and air circulation systems.
  • Initially, power is channeled to the incubator through a Miniature Circuit Breaker (MCB). Once powered, the temperature within the incubator is set, typically at 20°C, using a digital PID (Proportional-Integral-Derivative) temperature controller. This controller plays a pivotal role in maintaining the desired temperature by continuously adjusting the heat input based on the difference between the set temperature and the current temperature sensed within the incubator.
  • Following the temperature setting, the incubator is set into operation for a standard duration of five days. It is noteworthy that the cooling system of the incubator is activated only post the stabilization of the set temperature, ensuring energy efficiency and precision in temperature regulation.
  • To ensure uniformity in temperature distribution within the incubator, an axial fan is integrated into the system. This fan circulates air throughout the chamber, preventing any potential temperature gradients and ensuring a consistent environment for the samples. The temperature sensor, a crucial component, continuously monitors the internal temperature. It relays this data to the PID controller, which in turn, modulates the heating or cooling elements to maintain the set temperature consistently over the desired duration.
  • In essence, the BOD Incubator operates on a feedback loop mechanism, where the temperature sensor and the PID controller work in tandem to ensure a stable and precise environment, optimal for the intended biochemical and microbial studies. This synergy of components and their orchestrated operations underline the scientific precision and reliability of the BOD Incubator.

Components of BOD Incubator

The BOD (Biological Oxygen Demand) Incubator is a meticulously designed scientific apparatus, essential for various research and industrial applications. Its construction is a culmination of multiple components, each serving a distinct purpose to ensure the device’s optimal functionality. Here’s an analytical overview of its primary components:

  1. Exterior: The outer protective layer that provides structural integrity to the incubator.
  2. Inner Chamber: The primary compartment where samples are placed, designed to maintain a controlled environment.
  3. Toughened Glass Window: A reinforced viewing window that allows for the observation of samples without disrupting the internal environment.
  4. Air Circulation Fan: Ensures uniform distribution of air within the incubator, maintaining a consistent temperature and preventing the formation of hot or cold spots.
  5. Removable Tray: A platform within the inner chamber where samples are placed. Its removable nature facilitates easy cleaning and adjustments.
  6. Temperature Sensor: A critical component that continuously monitors the internal temperature, feeding data to the controller for precise temperature regulation.
  7. Door Hinges: Mechanisms that allow the door to swing open and close, ensuring a tight seal when shut.
  8. Door Handle with Lock & Key: Provides secure access to the inner chamber, preventing unauthorized access.
  9. PID Temperature Controller: An advanced controller that uses Proportional-Integral-Derivative logic to maintain the desired temperature with high accuracy.
  10. Analog Ampere Meter: A device that measures the current flow, ensuring the incubator operates within safe electrical parameters.
  11. Pilot Lamp: An indicator light that signals the operational status of the incubator.
  12. Safety Thermostat: A protective feature that prevents overheating by cutting off power if the temperature exceeds safe limits.
  13. On/Off MCB (Miniature Circuit Breaker): A safety device that protects the incubator from electrical overloads and short circuits.
  14. Refrigeration System: Ensures the cooling of the incubator, especially vital for studies requiring temperatures below ambient.
  15. Power Cord: Supplies electrical power to the incubator.
  16. Caster Wheels: Allow for easy mobility of the incubator, especially useful in laboratory settings where repositioning may be required.
  17. Solid Door: Provides a secure seal for the inner chamber, ensuring the maintenance of a stable internal environment.
  18. Heater: Warms the inner chamber to the desired temperature, especially crucial for studies requiring elevated temperatures.

In summation, the BOD Incubator is a composite of various components, each playing a pivotal role in its operation. Its design reflects a harmonious blend of functionality and safety, making it a cornerstone in many scientific endeavors.

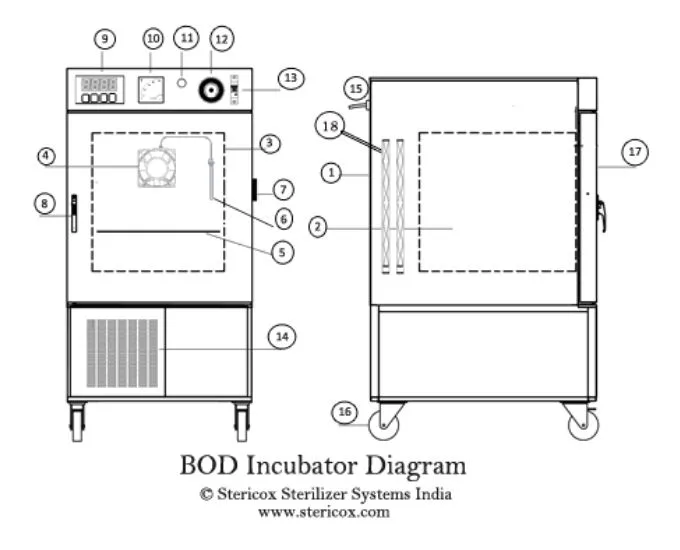

BOD incubator Labeled Diagram

BOD Incubator Labeled Diagram
BOD Incubator Labeled Diagram
  1. Exterior
  2. Inner chamber
  3. Toughened glass window
  4. Air circulation fan
  5. Removable tray
  6. Temperature sensor
  7. Door hinges
  8. Door handle with lock & key
  9. PID temperature controller
  10. Analog ampere meter
  11. Pilot lamp
  12. Safety thermostat
  13. On/Off MCB
  14. Refrigeration system
  15. Power cord
  16. Caster wheels
  17. Solid door
  18. Heater

Application of BOD incubators

BOD (Biological Oxygen Demand) Incubators have carved a niche for themselves as indispensable instruments across a spectrum of industries, owing to their ability to provide a controlled environment conducive for specific biochemical and microbial processes. Their applications span diverse sectors, each harnessing the capabilities of these incubators to meet specific industry requirements.

  1. Pharmaceutical Industry: Within the realm of pharmaceuticals, BOD incubators play a pivotal role in ensuring the efficacy and safety of drugs. They provide the necessary conditions for various tests and experiments that ascertain the quality and stability of pharmaceutical products.
  2. Agriculture: In the agricultural sector, BOD incubators are employed to study the germination of anaerobic bacteria. These bacteria play a crucial role in soil fertility and plant health, and understanding their growth patterns can lead to enhanced agricultural practices and crop yields.
  3. Beverage Industry: For beverage manufacturers, especially those producing liquors, BOD incubators are instrumental in assessing the nourishment levels under intended operational conditions. This ensures that the beverages maintain their quality, taste, and safety standards.
  4. Research Laboratories: Research labs, the epicenters of scientific exploration, extensively utilize BOD incubators for a myriad of experiments. These incubators provide the precise conditions required for studies that demand specific temperature and environmental controls.
  5. Waste Processing Plants: In the context of environmental conservation, BOD incubators find application in waste processing plants. Here, they are used to evaluate the efficiency of treatment systems, ensuring that waste is treated optimally before being released into the environment.

In summation, the BOD Incubator, with its ability to simulate specific environmental conditions, finds multifaceted applications across various industries. Whether it’s ensuring the quality of a drug, studying bacterial growth in agriculture, or assessing the treatment efficiency in waste plants, the BOD Incubator stands as a testament to the confluence of science and industry, driving advancements and ensuring quality across sectors.

Difference between Incubator and BOD Incubator

In the realm of scientific research and industrial applications, incubators play an indispensable role in providing controlled environments for various processes. However, when delving into the specifics, it becomes imperative to distinguish between standard incubators and BOD (Biological Oxygen Demand) incubators, as they cater to different requirements and operate on distinct principles.

  1. Temperature Regulation:
    • Incubator: A standard incubator primarily offers heating capabilities. It is typically set to operate at a temperature of 37°C, which is the physiological temperature conducive for the growth of many microorganisms, especially human pathogens.
    • BOD Incubator: Contrarily, a BOD incubator, often referred to as a refrigerator or cooling incubator, is equipped with both heating and cooling functionalities. This dual capability allows it to operate at a broader temperature range, typically at lower temperatures such as 10°C and 21°C, making it suitable for specific biochemical and microbial studies that require cooler environments.
  2. Functionality and Application:
    • Incubator: Standard incubators are designed to foster the growth of microorganisms by providing them with a stable and warm environment. They are commonly used in microbiology labs for routine cell culture processes.
    • BOD Incubator: The BOD incubator, on the other hand, is tailored for studies related to Biological Oxygen Demand. It is used to determine the amount of oxygen required by bacteria while decomposing organic substances under aerobic conditions. Given its ability to maintain lower temperatures, it is also employed in studies that necessitate cooler conditions.

In essence, while both incubators and BOD incubators serve the overarching purpose of providing controlled environments for scientific processes, their operational principles, temperature ranges, and specific applications set them apart. Recognizing these differences is crucial for researchers and professionals to ensure that they employ the appropriate equipment for their experimental and industrial needs, thereby ensuring accuracy and reliability in their endeavors.

ParameterIncubatorBOD Incubator
Temperature RegulationPrimarily offers heating capabilities.Equipped with both heating and cooling functionalities.
Typical Operating TemperatureSet to operate at 37°C.Operates at a broader temperature range, typically at lower temperatures such as 10°C and 21°C.
FunctionalityDesigned to foster the growth of microorganisms by providing a warm environment.Tailored for studies related to Biological Oxygen Demand and other processes requiring cooler conditions.
Common ApplicationsUsed in microbiology labs for routine cell culture processes.Used to determine oxygen demand in decomposition processes and studies necessitating cooler conditions.

Operating Procedure of BOD Incubator

The BOD (Biological Oxygen Demand) Incubator is a specialized instrument designed to maintain a controlled environment for various scientific and industrial applications. Proper operation is crucial to ensure accurate results and the longevity of the equipment. Here’s a systematic guide to its operating procedure:

  1. Power Connection: Before initiating the operation, ensure that the BOD incubator is securely connected to the power supply.
  2. Activation:
    • Engage the main switch located on the mainboard.
    • Subsequently, activate the switch on the incubator’s cabinet.
  3. Temperature Setting:
    • To set the desired temperature, utilize the controller interface.
    • Press the ‘set’ knob followed by the appropriate soft key to input the required temperature value.
  4. Daily Temperature Monitoring:
    • It’s imperative to consistently monitor the incubator’s temperature to ensure it remains within the desired range.
    • Observe the temperature value displayed on the controller. This value should be recorded daily for accuracy and consistency.
  5. Temperature Deviation Check:
    • Regularly check the temperature indicated on the digital screen.
    • Ensure that the temperature does not deviate by more than 2 degrees centigrade from the set value. Any significant deviation could impact the quality of the experiments or samples within.

In conclusion, the BOD Incubator is a precision instrument, and its proper operation is paramount. Adhering to the outlined procedure ensures not only the accuracy of the results but also the longevity and optimal performance of the equipment. Regular monitoring and adherence to guidelines are essential for maintaining the integrity of the studies conducted within.

Precautions for Operating a BOD Incubator

The BOD (Biological Oxygen Demand) Incubator is a sophisticated piece of equipment, pivotal in various scientific and industrial applications. To ensure its optimal performance and longevity, certain precautions must be diligently observed:

  1. Power Disconnection: When the BOD incubator is not actively in use, always disconnect it from the power socket. This minimizes unnecessary power consumption and reduces potential risks.
  2. Periodic Servicing: Regular maintenance and servicing are paramount. This not only ensures the incubator’s efficient operation but also helps in early detection of any potential issues, thereby avoiding prolonged downtime.
  3. Instruction Manual: Prior to operating the BOD incubator, it’s imperative to thoroughly read the instruction manual. This provides a clear understanding of its functionalities and limitations, ensuring safe and effective use.
  4. Avoid Overuse: While the BOD incubator is designed for consistent performance, it’s essential not to overburden it. Continuous operation without breaks can lead to wear and tear, affecting its efficiency.
  5. Safety During Cleaning:
    • Before initiating the cleaning process, ensure that the incubator is completely disconnected from the power supply. This is a crucial safety measure to prevent any electrical mishaps.
    • Regular cleaning is essential to maintain the incubator’s performance and hygiene. Accumulation of dust or contaminants can hinder its functionality.
  6. Temperature Monitoring:
    • Consistent monitoring of temperature changes is vital. While daily checks are recommended, a comprehensive review on a monthly basis can provide insights into any deviations or inconsistencies in its performance.

In summary, the BOD Incubator is a valuable asset in scientific research and industrial applications. Adhering to the aforementioned precautions ensures its optimal performance, safety, and durability. Proper care and maintenance are the cornerstones of its prolonged and efficient service.

Advantages of BOD Incubator

The BOD (Biological Oxygen Demand) Incubator stands as a pivotal instrument in the realm of environmental science and wastewater treatment. It serves as a reliable means to gauge the oxygen consumption by microorganisms during the decomposition of organic matter. Delving deeper into its benefits, we find:

  1. Precision in Measurement: One of the primary advantages of the BOD incubator is its ability to provide an exact quantification of the oxygen utilized by microorganisms. This measurement is crucial as it directly correlates with the concentration of organic substances present in water samples.
  2. Continuous Monitoring: The BOD incubator facilitates ongoing observation of oxygen consumption. This continuous tracking over extended periods ensures enhanced accuracy in results, capturing even minute fluctuations.
  3. Consistency and Reproducibility: The BOD incubator aligns with standard laboratory protocols, ensuring that the results obtained are not only reliable but also reproducible. This consistency is vital for comparative studies and for establishing benchmarks.
  4. User-Friendly Interface: Despite its intricate functionalities, the BOD incubator is designed for ease of use. Even individuals with minimal technical expertise can operate it efficiently, given its intuitive design.
  5. Versatility in Application: Its utility isn’t confined to a single domain. Whether it’s a wastewater treatment facility, an environmental lab, or a research institution, the BOD incubator finds relevance and application, underscoring its versatility.
  6. Water Quality Assessment: At its core, the BOD incubator serves as an invaluable tool in evaluating water quality. By measuring the BOD levels, one can ascertain the efficacy of wastewater treatment processes and gauge the extent of organic pollutants in water bodies.

In summation, the BOD Incubator emerges as an indispensable asset in environmental science, offering a blend of accuracy, consistency, and versatility. Its contributions to assessing water quality and treatment efficacy underscore its significance in contemporary research and industrial applications.

Disadvantages of BOD Incubator

The BOD (Biological Oxygen Demand) Incubator, while instrumental in environmental assessments and wastewater treatment evaluations, is not devoid of limitations. Here’s a detailed exploration of its potential drawbacks:

  1. Dependency on Stable Power: The BOD incubator’s precision is contingent upon a consistent power supply. Power interruptions or fluctuations can compromise the accuracy of its readings, making it imperative to have a stable electrical source.
  2. Maintenance and Calibration: To ensure the reliability of its results, the BOD incubator demands meticulous maintenance and periodic calibration. Neglecting these aspects can lead to deviations in readings, potentially affecting research outcomes or water quality assessments.
  3. Economic Considerations: The initial investment for a BOD incubator can be substantial, potentially straining the budgets of smaller research entities or laboratories. Additionally, its operational costs can add to the financial burden.
  4. Need for Controlled Environment: The BOD incubator mandates a specific controlled environment for optimal functioning. Ensuring such conditions might be challenging in certain settings, thereby affecting its performance.
  5. Time-Intensive Process: The incubation process intrinsic to the BOD assessment can be protracted. This extended duration might not align with scenarios demanding swift results.
  6. Sensitivity Limitations: The BOD incubator has a circumscribed sensitivity range. Consequently, it might not be adept at gauging BOD levels in samples with extremely high or low concentrations of organic matter.

In conclusion, the BOD Incubator, while invaluable in its contributions to environmental science, comes with its set of challenges. It’s imperative for users to be cognizant of these limitations and ensure meticulous handling and maintenance to harness its full potential.


What is a BOD Incubator?

A BOD (Biological Oxygen Demand) Incubator is a laboratory equipment used to measure the oxygen demand of microorganisms in a water sample, indicating the organic quality of the water.

Why is BOD measurement important?

BOD measurement is crucial as it helps determine the amount of organic pollution in water, which can be used to assess water quality and the efficiency of wastewater treatment processes.

How does a BOD Incubator work?

It maintains a specific temperature, usually around 20°C, allowing microorganisms to break down organic matter in a sample. The oxygen consumed during this process is measured to determine the BOD value.

What is the typical temperature range of a BOD Incubator?

The standard temperature range is 5°C to 60°C, with most BOD tests typically conducted at 20°C.

How often should a BOD Incubator be calibrated?

Regular calibration, typically once a year or as specified by the manufacturer, ensures accurate and consistent results.

Can a BOD Incubator be used for other applications besides BOD measurement?

Yes, it can also be used for general incubation purposes, microbial tests, and other research applications requiring a controlled temperature environment.

What are the main components of a BOD Incubator?

Key components include a temperature controller, air circulation fan, removable trays, temperature sensor, and a refrigeration system.

How do I maintain and clean a BOD Incubator?

Regular cleaning with mild detergents, ensuring the trays are clean, and periodic maintenance checks are essential. Always disconnect the power supply before cleaning.

What factors can affect the accuracy of BOD measurements?

Factors include temperature fluctuations, contamination of samples, improper calibration, and power interruptions.

Are there alternatives to BOD Incubators for measuring water quality?

While BOD Incubators are standard for BOD measurements, other methods like Chemical Oxygen Demand (COD) tests can also be used to assess water quality, though they measure different parameters.
