What is Dark Field Microscopy?

Darkfield microscopy is a form of light microscopy that facilitates detection by contrast. For example, brightfield microscopy uses a light source that shines light directly through the sample in order to illuminate the sample from below; darkfield microscopy uses a condenser that shines light at an oblique angle so that when the light is scattered and reflected off the sample, it can be seen as bright in a dark field. Thus, darkfield microscopy is more effective for viewing live, unstained samples because even the smallest details can be noted as the experiment continues.

Although abbreviated microscopes have been around since the 1600s, the first darkfield microscopy was used in 1673 by Antoni van Leeuwenhoek, although its components are much more sensitive and detailed today. Additionally, today’s dark-field microscopy has become digital with multilayered computerized imaging and automation processes for improved resolution and real-time views of sensitive, living biological entities. This is crucial for microbiology and educational settings to observe microbes that would otherwise go unnoticed or be too small to remain still long enough to be observed.

Definition of Dark Field Microscope

A darkfield microscope is a type of optical microscope that uses oblique illumination to light the specimen, causing it to appear bright against a dark background. This technique enhances the visibility of transparent and living specimens by excluding the unscattered light from the image.

Principle of Dark Field Microscope (How does dark field microscopy work?)

Darkfield microscopy is a high-resolution microscopy due to the contrast by light scattering, which allows for a bright sample on a black background. Basically, the condenser of the light source has a diaphragm with a central circular opening so that the central light rays are blocked and a “cone of light” is projected with larger angles. For example, more light rays are projected from many angles to hit the sample. Therefore, when one wants to see the transparent sample, the sample will scatter, refract, or reflect the light rays directed towards it; only the deflected ray will enter the objective. This creates the bright sample on the black background. Therefore, this transparent microscopy works best with transparent samples or organisms; unstained living samples can be examined as long as their refractive index is the same as that of the surrounding fluid. Therefore, it works best with unstained organisms because it makes them look better; It does not use transmitted light, which allows living or delicate organisms to be observed.

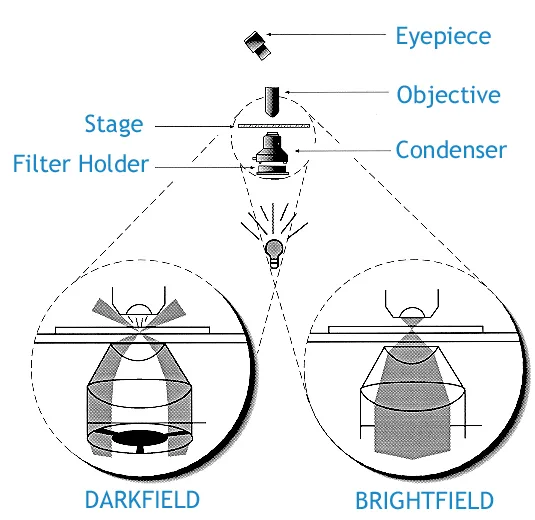

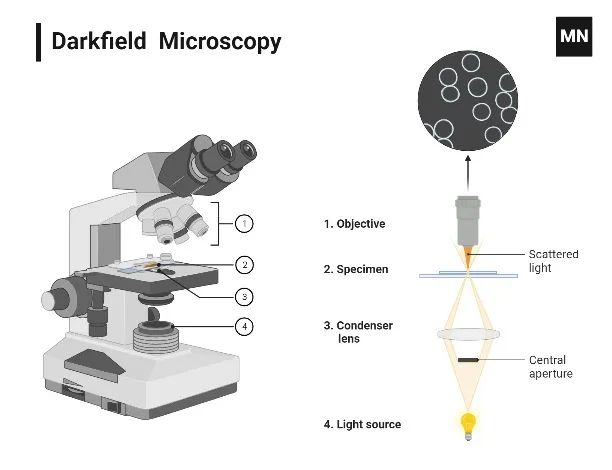

Parts of Dark Field Microscope

The parts of a darkfield microscope include the following:

1. Light source – As with any other type of microscopy, it is necessary to visualize the sample; however, a darkfield microscope, in particular, requires a more intense light source to provide the oblique and intensified light required for this specific process.

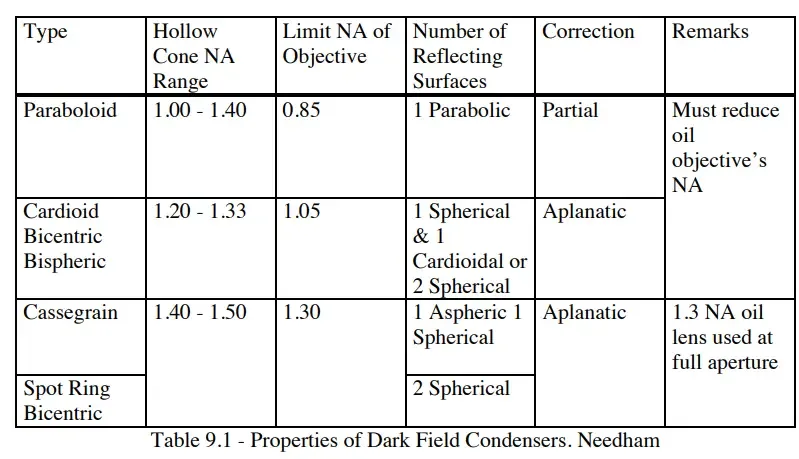

2. Condenser with central circular stop- This is necessary to make any microscope that uses darkfield illumination. A central opaque disk resides that prevents direct light from hitting the sample (controlled by the aperture); it allows only oblique rays to hit the sample. Therefore, the objective lens receives only the light diffracted by the sample itself and thus, a bright image on a dark background is produced.
3. Objective lens– Collects the light that has been scattered by the sample to form the image. In darkfield microscopy, the objective lens is positioned to collect not the incident light from the condenser but the light that is scattered after interacting with the sample.
4. Condenser Lens- Focuses all the light coming from below and shines it upward toward the specimen.
5. Stage – The horizontal plane apparatus where the specimen slide is positioned for observation.
6. Focusing Mechanism – Usually coarse and fine adjustments that move the stage or the position of the objective lenses to bring the specimen into focus.
7. Eyepiece (ocular lens) – Apparatus through which the observer looks down to view the magnified image.
8. Arm and Base – Structural and supporting elements of the microscope.

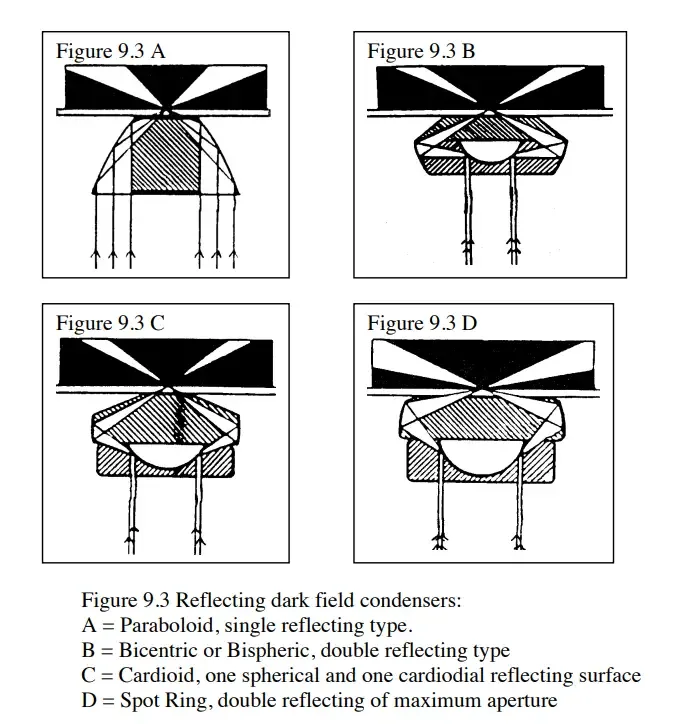

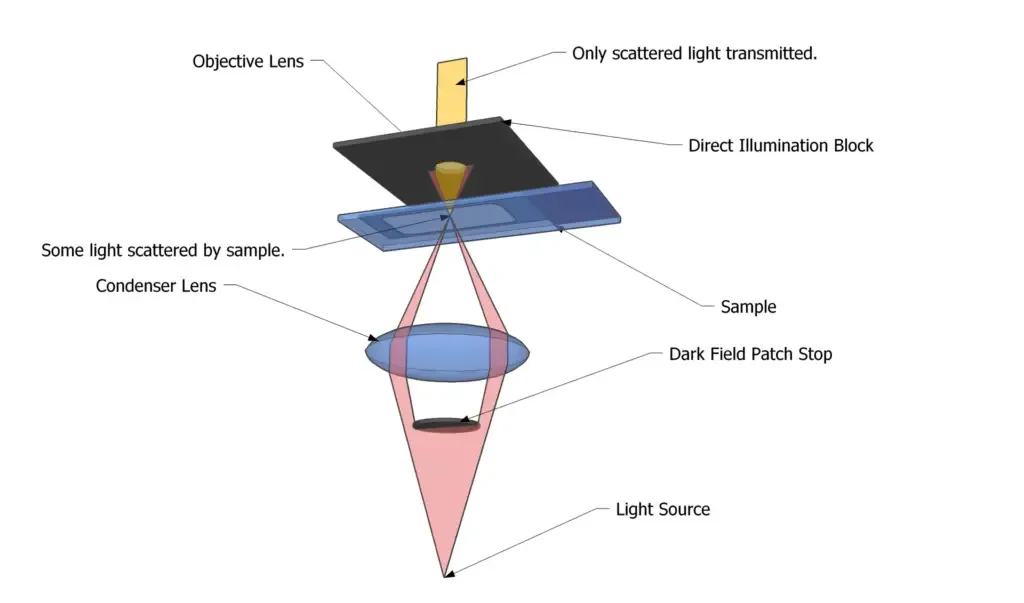

The light’s path in Dark Field Microscope

1. Light passes through the microscope and falls on the slide.
2. The aperture ring ensures that the light does not pass completely through the microscope, but forms a ring around the outside.
3. The condenser lens focuses the light onto the slide.
4. Most of the light passes directly through the slide, but some is refracted.
5. The objective lens captures the refracted light as a disk that blocks normal light from passing through.
6. The refracted light is what makes up the photograph of the slide, with the slide being white and the negative space being black.

Methods for Darkfield Microscope (Operating Procedure of Darkfield Microscope)

1. Place the slide on the microscope stage and secure it with stage clips. Insert the darkfield condenser, either an annular aperture or a central opaque stop.
2. Ensure that the light source is at maximum power and intensity.
3. Open the aperture diaphragm to admit as much light as possible.
4. Adjust the condenser diaphragm to the numerical aperture of the objective being used.
5. Select an objective lens with a numerical aperture of 0.65 or higher.
6. After focusing with a coarse adjustment, use a fine adjustment for finer focus clarity.
7. Observe the specimen, which should appear bright on a dark background.
8. Darkfield illumination relies on optical components, a condenser, and lenses. Remember that thick specimens do not show up well in dark field.

Application of Dark Field Microscope

• Filamentous Bacteria—Enables detection of filamentous bacteria invisible under brightfield.

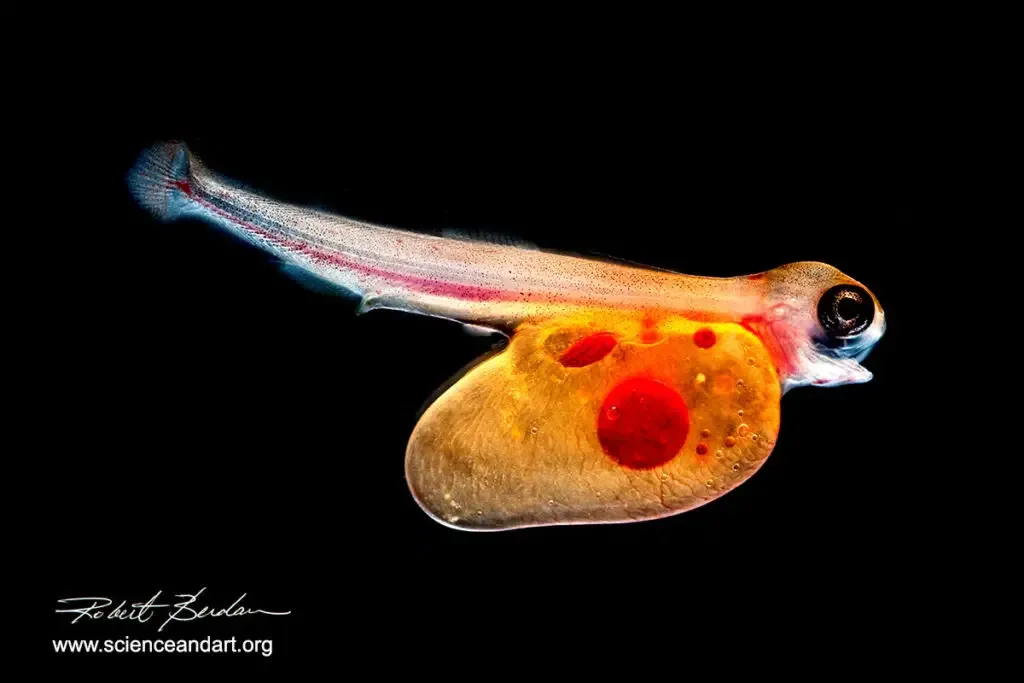

• Untreated Live Organisms—Essential for viewing live, unstained cells and microbes.
• Inculturative Bacteria—Enables viewing of bacteria that cannot be grown in the lab.
• Microbial Movement—Important for studying microbes while they’re moving.
• Blood and Algae—Allows for viewing of blood and algae.
• Invertebrate—Important for viewing invertebrates like squids and their activity.

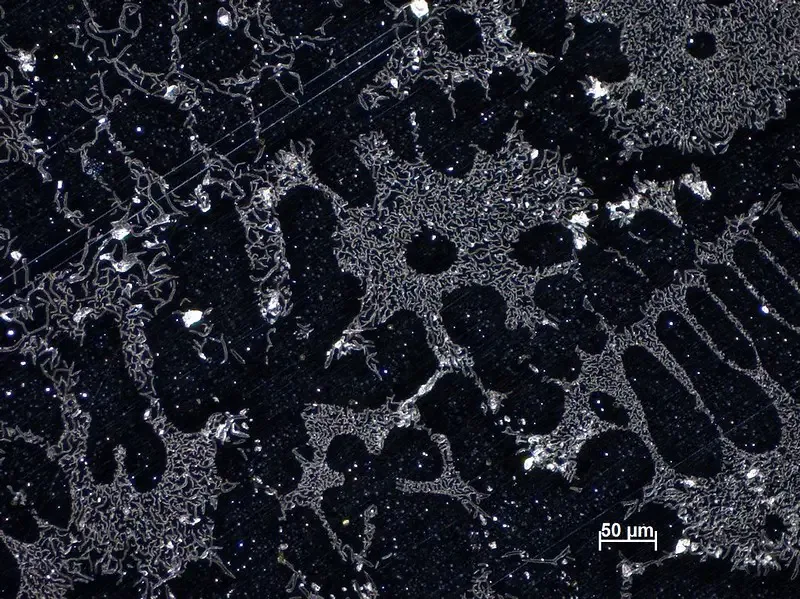

• Scientific Applications In Materials— This would be useful for materials studies; for example, the grain boundaries of a given material.

Types of specimens used for Dark Field Microscope

1. Easier to see in brightfield or without staining- Objects that are easier to see without staining and have a higher refractive index or clarity. For example, living cells and non-pigmented microorganisms are quite visible without staining.
2. Microorganisms – The ability to see some types of microorganisms such as bacteria and protozoa is a problem in brightfield, but the darkfield condenser provides excellent contrast and is easy to see.

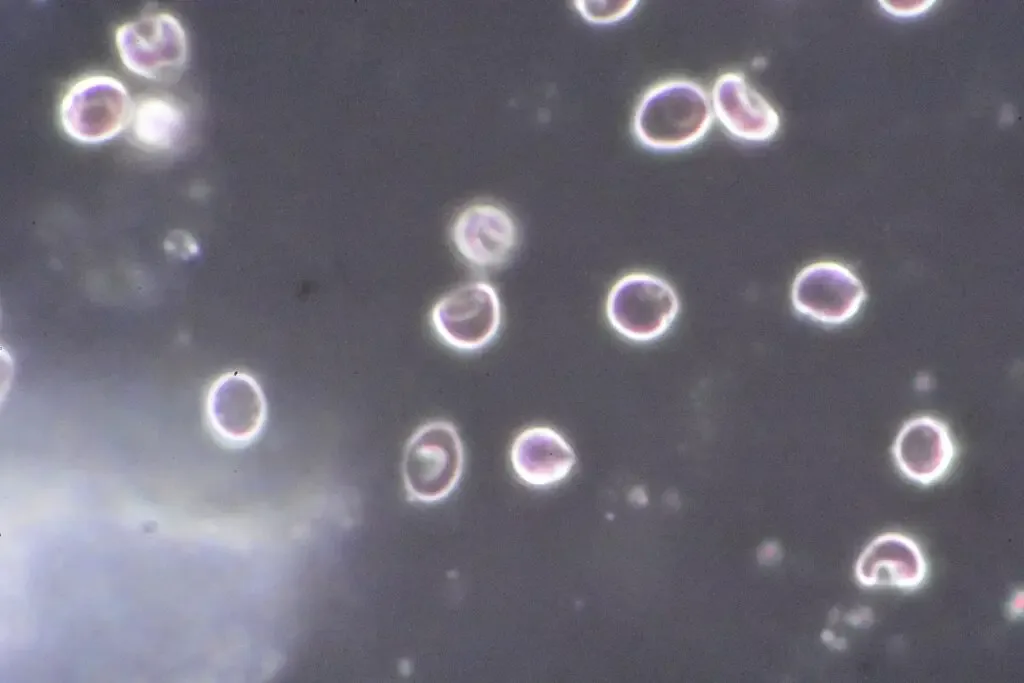

3. Histological sections- Specimens prepared for histology and very thin sections (or with silver staining) can be viewed to reveal more intricate details of the structure.
4. Specimens with opaque backgrounds or materials behind transparent objects- Specimens with inclusions or refractive materials are ideal for darkfield microscopy because the invisible background material creates a much more effective contrast with the refracted light.

Advantages of Dark Field Microscope

• Enhanced Contrast – Provides high contrast images of transparent or unstained specimens.
• No Need for Staining – Can observe live cells and microorganisms without the need for staining.
• Observation of Fine Structures – Allows detailed observation of small, fine structures like bacteria, protozoa, and algae.
• Live Specimens – Ideal for observing live specimens without altering or damaging them.
• Improved Visibility – Can reveal features of specimens that are invisible under standard light microscopy.
• Better Resolution – Helps achieve better resolution for thin or transparent samples that would otherwise be difficult to see clearly.

Limitations of Dark Field Microscope

• Low light levels can make images appear dim and require sensitive detection.
• Strong illumination is needed, which may damage delicate specimens.
• Dust, dirt, or air bubbles can distort the image.
• Not ideal for precise quantitative measurements.
• Limited depth of field makes it difficult to focus on thicker specimens.
• Intense light can cause glare and image distortion.
• Artifacts can occur due to improper specimen preparation.

Challenges of Using Dark Field Microscope

Here are the challenges of using dark field microscopy:

• Specimen preparation must be precise to avoid image degradation.
• Clean slides are crucial, as any debris can distort the image.
• Requires specialized and often costly equipment.
• Sensitive to contaminants like dust or air bubbles.
• Limited depth of field makes focusing on thicker specimens difficult.
• Strong illumination can damage delicate samples.
• Improper specimen preparation can cause artifacts in the images.

Why Is Dark Field Microscope a Good Imaging Technique?

Here’s why dark field microscopy is a good imaging technique:

• It provides high contrast images, making fine details easier to see.
• No need for staining, allowing observation of live cells and microorganisms.
• It is effective for observing small, fine structures like bacteria and protozoa.
• Ideal for studying live specimens without damaging them.
• It can reveal features that are invisible under standard light microscopy.
• Helps achieve better resolution for thin or transparent samples.

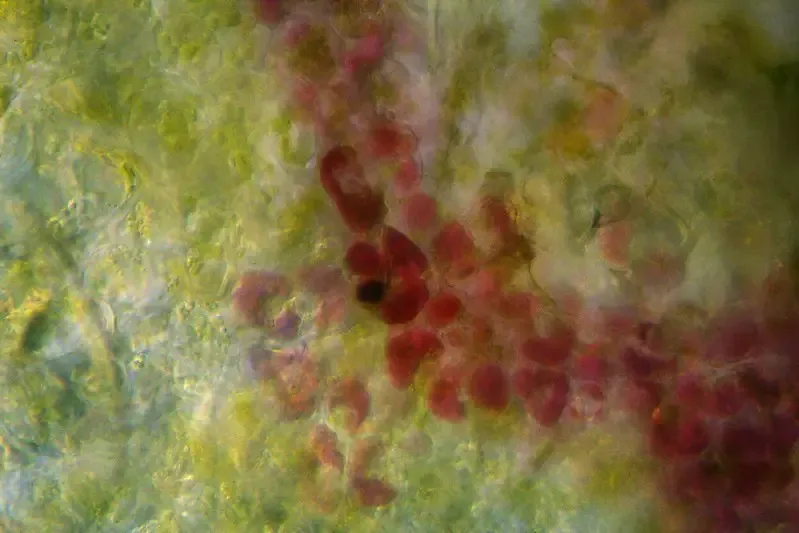

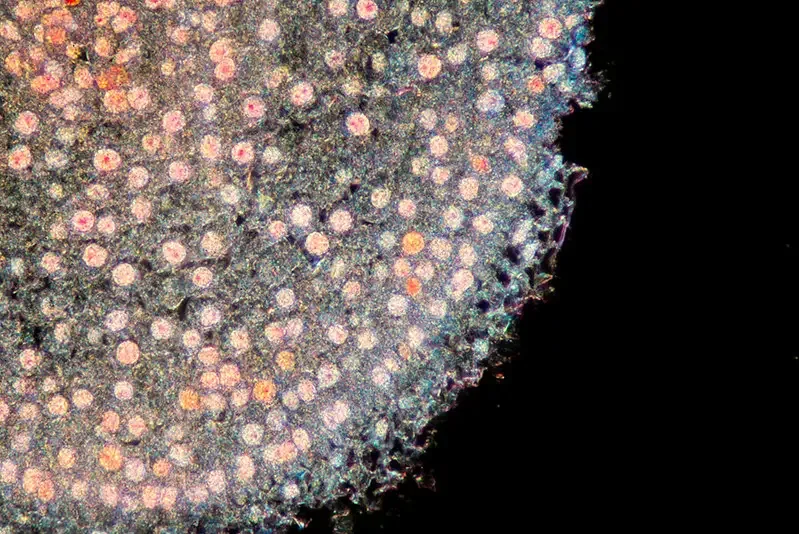

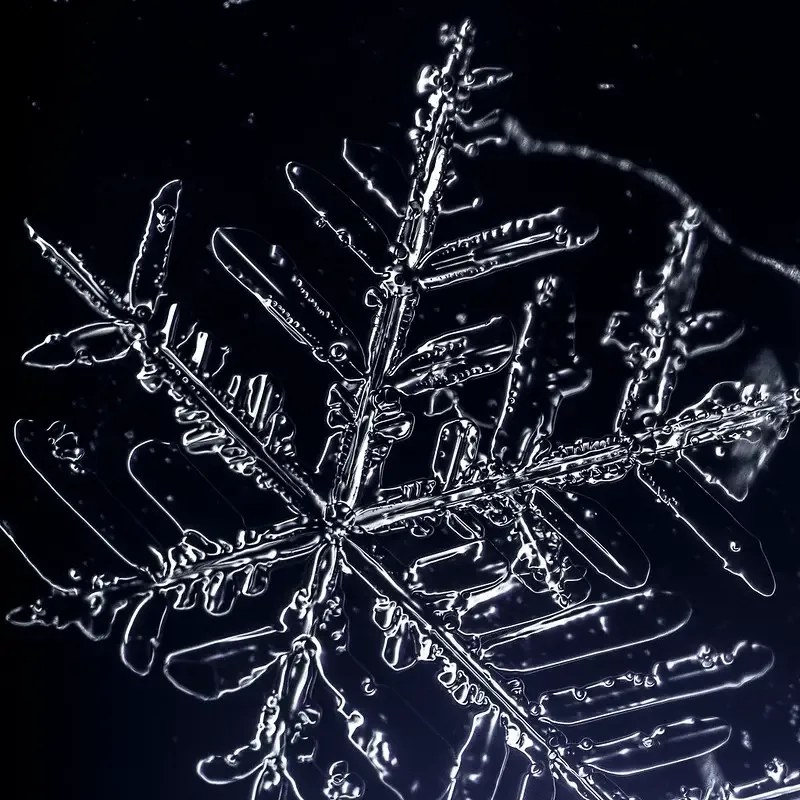

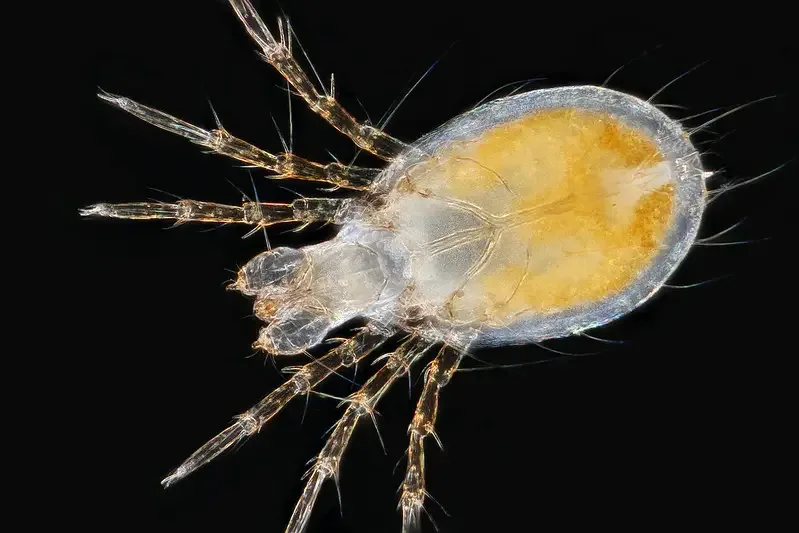

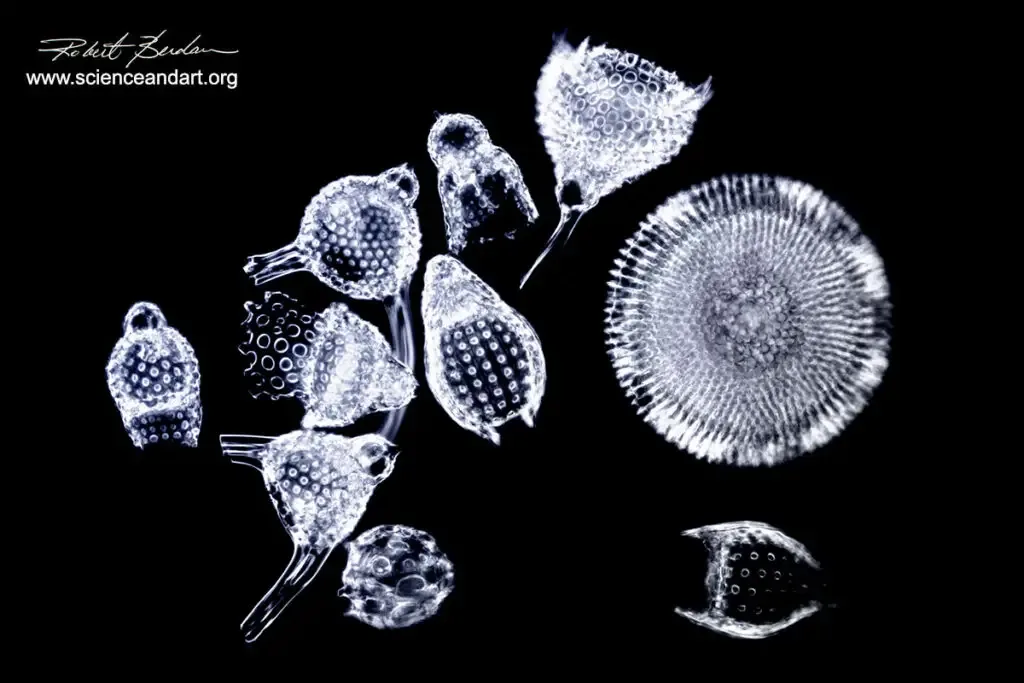

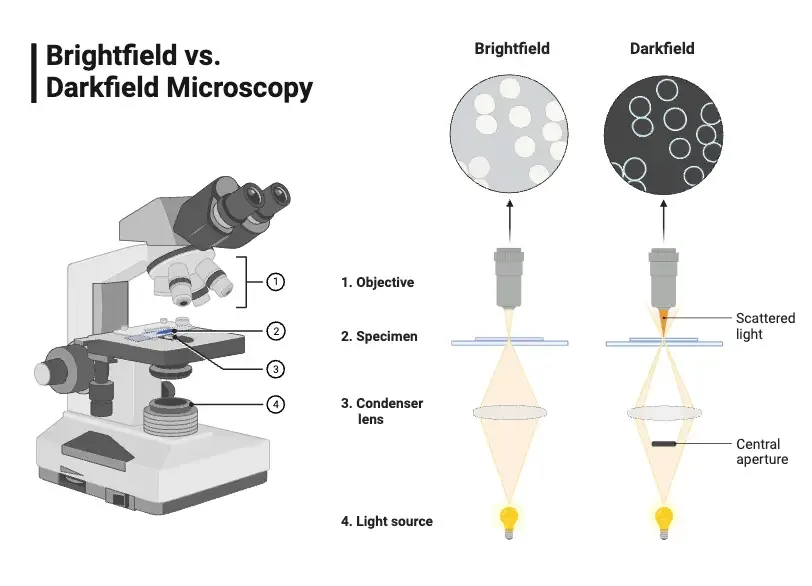

Difference between Dark field and Bright field microscopy – Bright Field vs Dark Field
