Equisetum – Classification, Structure, Reproduction and Life Cycle

What is Equisetum?

• Equisetum, commonly known as horsetail, is the only surviving genus in the family Equisetaceae, consisting of about 15 species globally. In the United States, particularly in Iowa, two species, Equisetum hyemale (scouring rush) and Equisetum arvense (field horsetail), are the most common.
• In terms of botanical classification, Equisetum is closely related to ferns. Like ferns, Equisetum does not produce seeds. Instead, it reproduces sexually through the formation of spores. However, the role of spores in the reproduction of Equisetum is not as central compared to other plant species. The plant primarily relies on an extensive underground rhizome system for its spread and propagation.
• These rhizomes, which can grow over 4 feet in length, allow Equisetum to expand outward from a central point. This horizontal growth forms patches, and the plant spreads more slowly in undisturbed soils, where rhizome movement is restricted. Therefore, the primary way Equisetum colonizes new areas is through the gradual extension of its rhizomes rather than through its spores. This rhizome-driven expansion is one of the key survival strategies of Equisetum, enabling it to persist in a wide variety of environments.

Taxonomic Rank	Name
Division	Sphenophyta
Class	Sphenopsida
Order	Equisitales
Family	Equisitaceae
Genus	Equisetum

Equisetum Characteristics

Equisetum, commonly known as horsetail, encompasses a distinctive group of plants that display unique morphological and ecological characteristics. These features highlight the evolutionary significance of Equisetum and its adaptability to various environments.

• Stems and Leaves: The stems of Equisetum are notable for being hollow, segmented, and ridged. This structural design enhances their strength and flexibility. Unlike most vascular plants, Equisetum does not possess true leaves. Instead, it features small, scale-like structures known as microphylls. These microphylls are arranged in whorls around the joints of the stems, contributing to the plant’s distinctive appearance.
• Reproduction: The reproductive strategy of Equisetum is primarily through spores, which are produced in specialized, cone-shaped structures called strobili. These strobili are located at the apex of the fertile stems and play a crucial role in the dispersal of spores. The production of spores allows for both sexual and asexual reproduction, facilitating the colonization of various habitats.
• Silica Deposits: A significant characteristic of Equisetum stems is the presence of abrasive silicates, which impart a rough texture to the stems. These silica deposits make Equisetum useful for polishing and cleaning purposes, as they can act as a natural abrasive material. The accumulation of silica also serves as a protective mechanism against herbivory.
• Ecology: Equisetum thrives in moist environments, including marshes, riverbanks, and damp woodlands. This preference for wet habitats allows the plant to play a vital role in these ecosystems, contributing to soil stabilization and nutrient cycling. Some species of Equisetum exhibit adaptability, enabling them to tolerate drier conditions, while others are specifically adapted to aquatic environments.
• Evolutionary Significance: Equisetum holds substantial evolutionary importance, representing one of the most ancient plant lineages. Its origins can be traced back to the Paleozoic era, with ancestors of modern horsetails flourishing during the Carboniferous period. During this time, large, tree-like forms of horsetails dominated terrestrial ecosystems, highlighting their former prominence in the plant kingdom.
• Medicinal Uses: Traditionally, Equisetum has been employed for various medicinal purposes, including wound healing and serving as a diuretic. Despite its historical usage, there is limited scientific evidence to substantiate these medicinal properties. Further research is necessary to fully understand the potential health benefits of Equisetum.

Equisetum Morphology

The structural components of Equisetum are elaborated upon as follows:

• Stems: The primary structure of Equisetum consists of segmented stems. These stems are hollow and contain deposits of silica, which impart a rough texture and increase the durability of the plant. Emerging from underground rhizomes, the stems typically exhibit a cylindrical shape, characterized by clearly defined nodes and internodes. The hollowness and segmented nature of the stems contribute to their lightweight yet sturdy construction.
• Nodes and Internodes: Nodes are distinct points along the stem where leaves or branches are attached. In Equisetum, the nodes are marked by clusters of small, scale-like leaves that encircle the stem, forming a protective sheath. The sections between two nodes are referred to as internodes, which vary in length and contribute to the overall height and structure of the plant.
• Leaves (Microphylls): Equisetum does not produce true leaves. Instead, it features small, scale-like structures known as microphylls. These microphylls are fused into sheaths at each node, arranged in a circular pattern around the stem. This arrangement allows for increased surface area for photosynthesis while maintaining the plant’s characteristic shape.
• Reproductive Structures: Reproduction in Equisetum occurs through spores, as the plants do not produce seeds. The spore-producing structures are located on cone-shaped formations called strobili (singular: strobilus), which develop at the tips of some stems. These strobili facilitate the dispersal of spores, enabling the propagation of the species.
• Roots: Equisetum plants possess adventitious roots that originate from the nodes on the underground rhizomes. These roots play a critical role in anchoring the plant within the soil, providing stability and enabling the absorption of water and essential nutrients.

Structure of the sporophyte

The sporophyte of Equisetum is a well-structured plant body that is differentiated into three primary parts: the stem, leaves, and roots. Each component plays a specific role in the plant’s overall function, contributing to its growth, reproduction, and survival in various environments. The structural features of the sporophyte are intricate, with both external and internal characteristics that allow Equisetum to thrive.

1. External Structure:
   • Stem: The stem is primarily underground and horizontal, known as a rhizome, which is heavily branched. These rhizomes can extend deep into the soil, sometimes over a meter. The stem is jointed with distinct nodes and internodes, giving rise to two types of branches: sterile and fertile. Sterile branches are green, persistent, and bear whorls of lateral branches at each node, performing vegetative functions. Fertile branches are non-green, generally unbranched, and short-lived, bearing a strobilus at their tips, which is responsible for reproductive functions.
   • Leaves: Leaves in Equisetum are small, slender, and scale-like, each containing a single midrib. They are arranged in whorls around the nodes of the stem. At the base, the leaves are fused, forming a cup-like structure, while their free tips create a tooth-like appearance. These leaves are simple and function primarily as protection and minimal photosynthesis.
   • Roots: The roots of Equisetum are slender, much-branched, and adventitious, meaning they arise from nodes on the rhizomes rather than from the primary root system. These fibrous roots anchor the plant in the soil and aid in nutrient absorption.
2. Internal Structure:
   • Aerial Stem: The transverse section (T.S) of the aerial stem reveals several distinct tissue systems:
     • Epidermis: The epidermis is single-layered, with a cell wall that is heavily silicified, providing rigidity. Stomata are present within the epidermal cells, facilitating gas exchange.
     • Cortex: The cortex is broad and differentiated into three zones: an outer sclerenchymatous layer providing structural support, a middle layer of chlorenchyma cells that assist in photosynthesis, and an inner parenchymatous layer that aids in nutrient storage. The innermost cortex layer is the endodermis, which contains casparian strips that regulate water flow.
     • Stele: Below the endodermis lies the stele, which is a dissected siphonostele with vascular bundles arranged in a ring. Each vascular bundle contains three small xylem strands with phloem in between, responsible for water and nutrient transport. The central region of the stem is hollow, filled with water.
   • Rhizome: The internal structure of the rhizome is similar to the aerial stem, but with notable differences:
     • The epidermis lacks stomata.
     • The cortex lacks chlorenchyma, as photosynthesis is unnecessary underground, and the sclerenchyma is less developed.
     • The pith can be either solid or hollow, depending on the species.
   • Root: In transverse section, the root exhibits three key layers:
     • The outermost layer, known as the epiblema, protects the root.
     • The cortex is divided into an outer exodermis with thick walls and an inner zone of thin-walled parenchyma, forming the endodermis.
     • The stele, responsible for conducting water and nutrients, varies from triarch to tetraarch, with metaxylem located at the center.

Reproduction of the sporophyte

The sporophyte of Equisetum exhibits two primary modes of reproduction: vegetative reproduction and spore production. Each method is essential for the propagation and survival of the species, utilizing different mechanisms to ensure the continuation of the life cycle.

1. Vegetative Reproduction: Equisetum sporophytes can reproduce asexually through several vegetative means, which involve the growth and development of new plants without the involvement of spores:
   • Tubers: In some species, round or ovoid tubers form along the rhizome (underground stem). These tubers, when detached from the parent plant, can grow independently into a new sporophyte. This method allows for efficient propagation, particularly in conditions where spores may not thrive.
   • Branch Primordia: Rhizome branches have pre-formed structures known as branch primordia. These primordia can develop into new sub-terranean (underground) or aerial branches when the older rhizome decays. This provides an additional vegetative method for Equisetum to extend its reach and survive across seasons.
2. Spore Formation: Equisetum also reproduces through the production of spores, which are formed in a specialized reproductive structure called a strobilus (plural: strobili) or cone. The process of spore formation involves the following steps:
   • Strobilus Structure: The strobilus is located at the tip of fertile shoots and consists of a central axis bearing numerous peltate (shield-shaped) appendages known as sporangiophores. These sporangiophores are arranged in whorls around the central axis. In primitive forms, the cone is nearly sessile (without a stalk), while in more advanced forms, it is stalked with a rounded apex. Some species feature a ring-like outgrowth at the cone’s base, called an annulus.
   • Sporangiophores and Sporangia: Each sporangiophore is a stalked, peltate structure that extends perpendicularly from the cone axis. The underside of each sporangiophore houses elongated, sac-like sporangia, where spores are produced. The number of sporangia per sporangiophore varies, typically ranging between 5 and 10.
   • Spore Development: The mature sporangium is a cylindrical structure with a delicate, one-cell-thick outer layer, known as the jacket layer. Inside, the sporogenous tissue contains spore mother cells, which undergo meiotic division to form haploid spore tetrads. Some of the sporogenous tissue degenerates, while the remaining spore mother cells differentiate into spores. Equisetum is generally homosporous, meaning all spores are of the same type, and these spores mark the beginning of the gametophytic generation.

Structure of the gametophyte

The structure of the gametophyte in Equisetum is a crucial component of its life cycle, playing a significant role in the reproduction of this plant. The gametophyte develops from a spore and exhibits distinct morphological and functional characteristics that facilitate its reproductive processes.

• Spore Structure: The spore is the initial cell of the gametophyte and has a globular shape, comprised of four concentric layers:
  • Innermost Layer (Endospore): This delicate cellulose layer is also referred to as the intine.
  • Middle Layer (Exospore): Positioned outside the endospore, this layer is complemented by an additional delicate layer known as the middle layer.
  • Outermost Layer (Epispore): The thick outermost layer, or episporium, is differentiated into four narrow, spirally wound bands, commonly known as elaters. These elaters have flat, spoon-like tips and remain tightly coiled around the spore until the sporangium dehisces.
  • Hygroscopic Properties: The elaters are highly sensitive to changes in moisture, allowing them to expand, which may aid in the dehiscence of the sporangium and subsequent spore dispersal.
• Germination and Development: Under favorable conditions, the spore germinates, giving rise to a typically monoecious gametophyte. Mature gametophytes are long-lived, green, thalloid structures that thrive in wet, shaded environments. They are characterized by:
  • Basal Region: A compact, colorless cushion-like region that anchors the gametophyte to the substrate.
  • Photosynthetic Lobes: Vertically erect, irregularly shaped lobes that are green and photosynthetically active. Rhizoids emerge from the lower surface of the basal region, aiding in nutrient absorption and anchorage.
• Sex Organ Formation: After approximately 30 to 40 days of growth under suitable conditions, the gametophytes begin to form sexual organs:

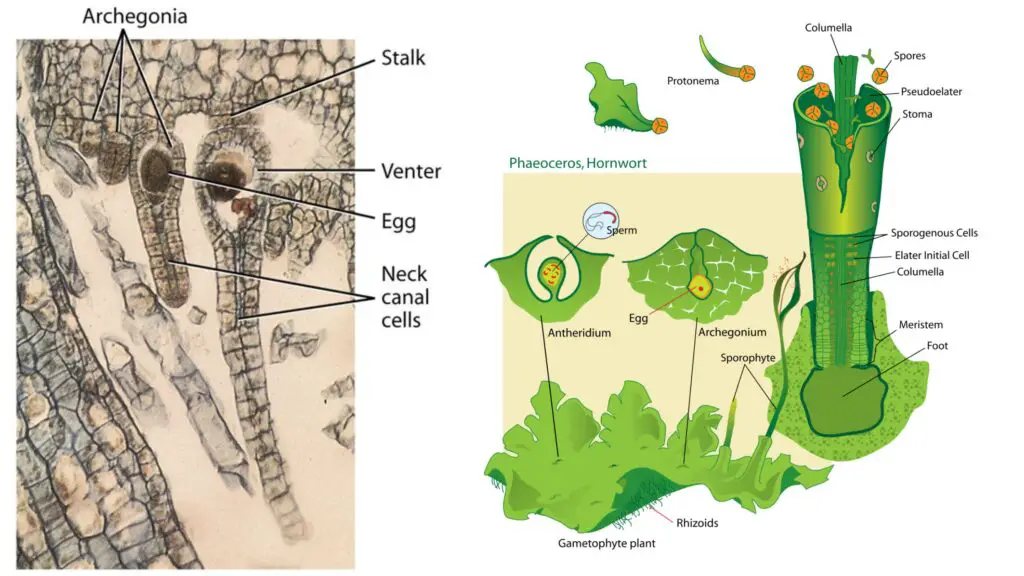

  • Archegonia: These female reproductive structures are the first to appear, developing in the meristematic margin of the gametophyte. The mature archegonium features:
    • Venter: This part is embedded within the gametophyte and contains a ventral canal cell and an egg cell.
    • Neck: A short structure consisting of four vertical rows of cells, with 1 to 2 neck canal cells.
  • Antheridia: The male reproductive structures, which tend to develop in greater numbers after archegonia formation. The mature antheridium has:
    • Outer Jacket Layer: A single cell thick, this layer encases the antheridium.
    • Androgonial Cells: The inner cell divides multiple times to form androgonial cells, which eventually produce sperm mother cells (androcytes). Each androcyte metamorphoses into multiflagellate spermatozoids, characterized by a large, flattened, and spirally coiled structure.
• Fertilization Process: During fertilization, a sperm swims towards the neck of the mature archegonium, navigating through a passage created by the dissolution of the neck canal cell and the ventral canal cell. Upon reaching the egg, fusion occurs, leading to the formation of a zygote (2n), marking the onset of the diploid generation in the life cycle of Equisetum.

Equisetum Reproduction

Equisetum, commonly referred to as horsetail, employs two primary methods for reproduction: sexual spore production and asexual vegetative propagation. Both methods ensure the survival and continuation of this ancient plant group. The details of each reproductive strategy are elaborated below.

• Spore Production: Sexual Reproduction
  This reproductive method is characterized by a complex alternation of generations, involving a dominant sporophyte phase (the visible horsetail plant) and a free-living gametophyte stage.
  • Formation of Spores:
    • Strobili (Cones): Specialized fertile shoots, typically devoid of chlorophyll, produce cones known as strobili at their apex.
    • Sporangia: Within these strobili are small, sac-like structures called sporangia. These undergo meiosis, a process of cell division that reduces the chromosome count by half, resulting in the formation of haploid spores.
    • Release of Spores: Upon maturity, the sporangia open, releasing a cloud of haploid spores into the air. This release is critical for sexual reproduction and enables the dispersal of genetic material.
  • Gametophyte Stage:
    • Germination of Spores: When a spore lands in a suitable moist environment, it germinates and develops into a small, independent gametophyte.
    • Independent Phase: The gametophyte stage is independent from the sporophyte and can perform photosynthesis. Morphologically, it typically resembles a flat green structure known as a thallus.
    • Sexual Organs: The gametophyte forms specialized reproductive organs, specifically antheridia (which produce sperm) and archegonia (which produce eggs).
  • Fertilization and Growth of Sporophyte:
    • Need for Water: Fertilization in Equisetum is water-dependent. Sperm released from one gametophyte swims through water to fertilize an egg located on another gametophyte.
    • Formation of Zygote: The fertilized egg develops into a diploid zygote, which contains a complete set of chromosomes. This zygote acts as the initial cell for the next generation of sporophyte.
    • Development of Sporophyte: Initially, the young sporophyte relies on the gametophyte for nourishment. Over time, it becomes independent, developing its own photosynthetic capabilities. This sporophyte phase dominates the life cycle of Equisetum, persisting for many years.
• Vegetative Reproduction: Asexual Spread via Rhizomes
  Equisetum is notably proficient in asexual reproduction through its extensive network of underground rhizomes.
  • Rhizomes: These are modified, horizontal stems that grow underground and store carbohydrates. Similar to their above-ground counterparts, rhizomes possess nodes and internodes and can extend several meters in length and depth.
  • Fragmentation: Rhizomes can naturally break apart or be fragmented through disturbances. Each fragment containing a node and bud can develop into a new Equisetum plant, contributing to the plant’s resilience and ability to proliferate.
  • Rapid Expansion: This method of vegetative reproduction enables Equisetum to spread quickly and efficiently, resulting in the formation of extensive colonies that can be challenging to eradicate.

Equisetum Life Cycle

Equisetum, commonly known as horsetail, has a distinctive life cycle that features two primary phases: the dominant sporophyte generation and the short-lived gametophyte generation. This alternation of generations is a fundamental aspect of its biology, contributing to its reproductive success and adaptation to various environments.

1. Sporophyte (Dominant Generation)
   The sporophyte is the recognizable, tall, green, leafy structure of Equisetum. It plays a critical role in spore production and photosynthesis, supported by its advanced vascular system, which facilitates the transport of water and nutrients throughout the plant.
   • Spore Production:
     • Spores are produced in specialized structures known as strobili, which are located at the tips of some stems.
     • Within the strobili, sporangia undergo meiosis, a process that reduces the chromosome number by half, resulting in the formation of haploid spores.
   • Characteristics of Spores:
     • Spores are individual reproductive units, each enclosed in a tough outer coat that aids in their survival during dispersal.
     • These spores are dispersed by wind, allowing them to reach new locations, where they can germinate under moist conditions.
2. Gametophyte (Independent Generation)
   Once the spores germinate, they develop into tiny, independent gametophytes.
   • Structure and Lifespan:
     • The gametophyte is typically a small, flat green structure resembling a heart-shaped thallus.
     • This phase is generally inconspicuous and has a relatively short lifespan.
   • Reproductive Functions:
     • The gametophyte produces sperm and eggs through mitosis, with the sperm formed in specialized structures called antheridia and the eggs produced in archegonia.
3. Fertilization
   The fertilization process in Equisetum is reliant on water for successful sperm movement.
   • Mechanism:
     • Sperm cells released from the antheridia swim through a thin film of water to reach the archegonia, where fertilization occurs.
     • When a sperm cell merges with an egg cell, it forms a diploid zygote, which marks the beginning of the next sporophyte generation.
4. Development of Sporophyte
   The zygote develops into a new sporophyte.
   • Initial Dependence:
     • Initially, the newly formed sporophyte depends on the gametophyte for nutrition.
     • However, as it matures, it develops the ability to photosynthesize independently.
   • Lifecycle Continuation:
     • As the new sporophyte grows and becomes self-sufficient, the gametophyte gradually diminishes in size and eventually disappears.
